CHOPPER SLURRY PUMPS

It is a machine designed for the emptying of the slurry-collecting vat.

It carries out the following functions:

  • Slurry mixing in order to grant a perfect break-up of the solid parts. This occurs with a horizontal gate on the reflux tube driven by a two way valve.
  • Chopping of the solid parts; a knife in front of the impeller grinds the strawy fragments and the hay remains in the vats granting a good intake
  • Distribution by means of the same hose as for fertirrigation
  • Tank-trucks filling with non use of the depressor.

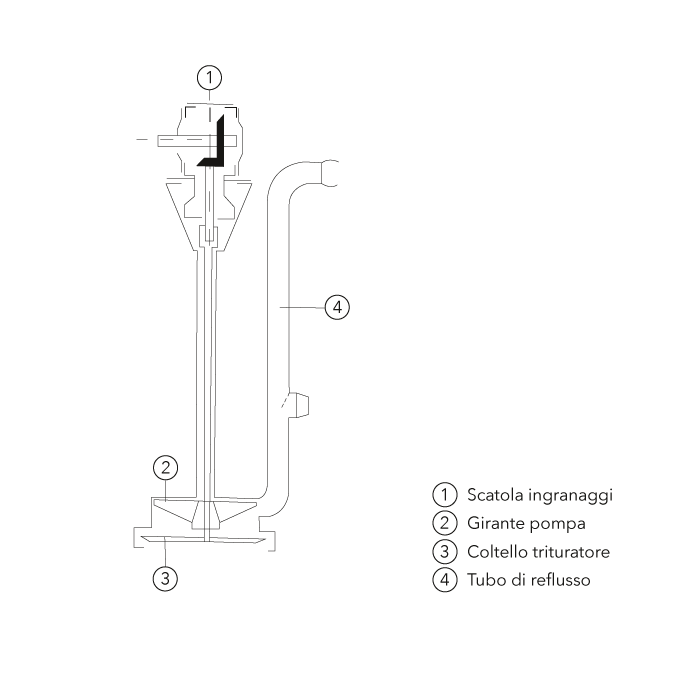

It is made out of a multiplier angle gearbox that takes motion from the tractor and drives both pump impeller and chopping unit vertically by an extension.

Gearboxes for this kind of machine

  • TV.278B
  • T.269B (9.269.245.10)
  • T.27A (9.267.063.00)
  • TV.22D
  • MR.90

The range of P.T.O. drive shafts normally used on this kind of machine is:

Series: T  Type:  60 / 80

Safety device:

  • Suggested: Bolt torque limiter (B)

Ex.: 07.635.017.10 / 07.835.012.10







- Recommended code list

9.269.245.10 – 9.267.063.00
