PRODUCT details
5367.014.118

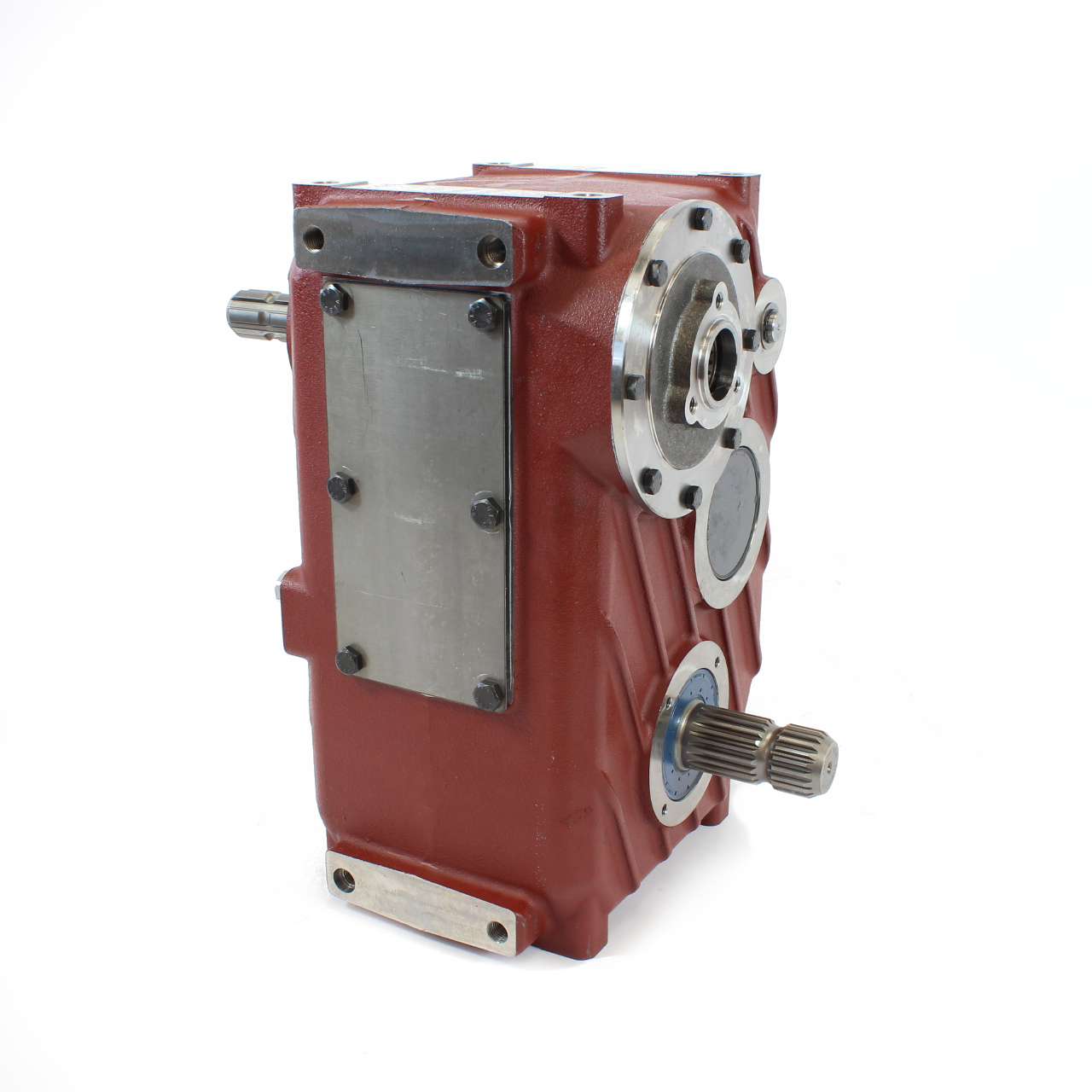

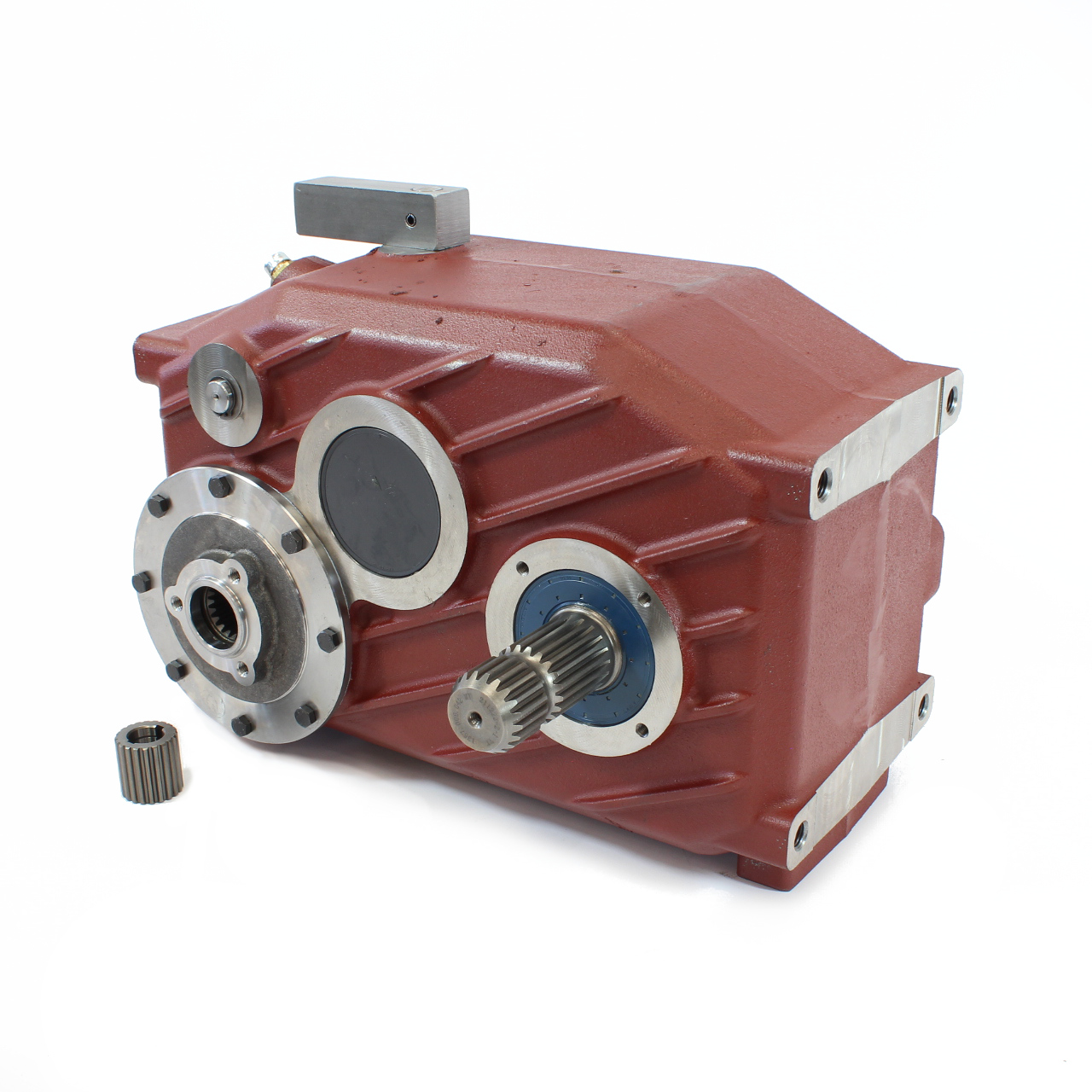

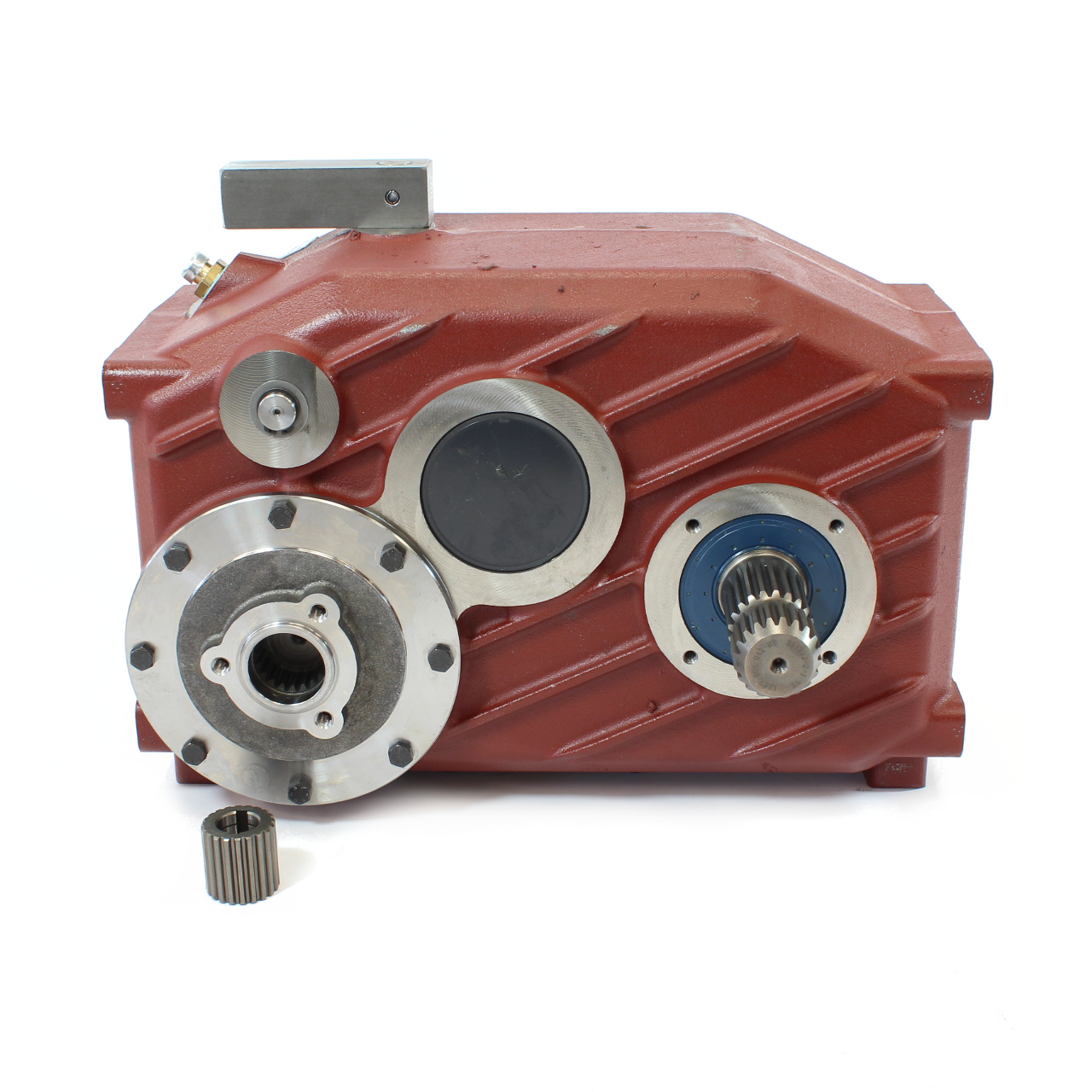

SPEED-CHANGE GEARBOX R 1:1-1:1. 8 C3A
SPEED-CHANGE GEARBOX R 1:1-1:1. 8 C3A
€ 3.012,95
LIMITED AVAILABILITY
Shipment Costs
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: COMER INDUSTRIES S.P.A. Model: C-3A Technical features: Type of application: Reduction gearshift unit Input power rate: 125Cv-170Kw (540RPM) Ratio: 1:1 - 1,8:1 Outputs: 2 Rotation The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component Shafts Rotation: Download data sheet to check the possible available rotation. Material: Cast iron Dry weight: Kg 95,2 Supplied without lubricant • Different shafts rotation available (please ask our TECHNICAL DEPARTMENT) Obsolete codes: -5367.014.018
List of combined products
LIMITED AVAILABILITY
1367.004.042
MID SHAFT 56x65 UNI221
MID SHAFT 56x65 UNI221
€ 182,60
LIMITED AVAILABILITY
1367.006.042
SHAFT 1"3/4 Z20
SHAFT 1"3/4 Z20
€ 265,26
LIMITED AVAILABILITY
1367.016.061
THRUST WASHER
THRUST WASHER
€ 15,74
LIMITED AVAILABILITY
1367.020.098
FORK
FORK
€ 88,93
LIMITED AVAILABILITY
1367.024.098
INNER LEVER
INNER LEVER
€ 74,77
LIMITED AVAILABILITY
1367.028.061
LUBRIFICATION SUPPORT
LUBRIFICATION SUPPORT
€ 14,18
COMING SOON
1367.032.099
BUSHING
BUSHING
€ 40,93
LIMITED AVAILABILITY
1367.034.026
GEAR Z26 M4
GEAR Z26 M4
€ 403,78
LIMITED AVAILABILITY
1367.036.041
GEAR SELECTOR ROD
GEAR SELECTOR ROD
€ 31,49
AVAILABLE
1367.039.000
SPRING D7X37.3
SPRING D7X37.3
€ 3,95
LIMITED AVAILABILITY
8.0.9.00888
TAPER ROLLER BEARING 30210
TAPER ROLLER BEARING 30210
€ 46,43
LIMITED AVAILABILITY
8.0.9.01782
TAPERED ROLLER BEARING 32210
TAPERED ROLLER BEARING 32210
€ 45,67
