PRODUCT details
9.267.253.00
GEARBOX 1.35 M-37.3 R -31.6 TP-27G
GEARBOX 1.35 M-37.3 R -31.6 TP-27G
€ 683,76
AVAILABLE
Shipment Costs
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: COMER INDUSTRIES S.P.A.
Model: TP-27G
Technical features
Type of application:
Reduction gear unit
Input power rate: 43Cv-31.6Kw (540RPM)
Speed increasing unit
Input power rate: 51Cv-37.3Kw (540RPM)
Ratio: 1,35
Outputs: 2
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component

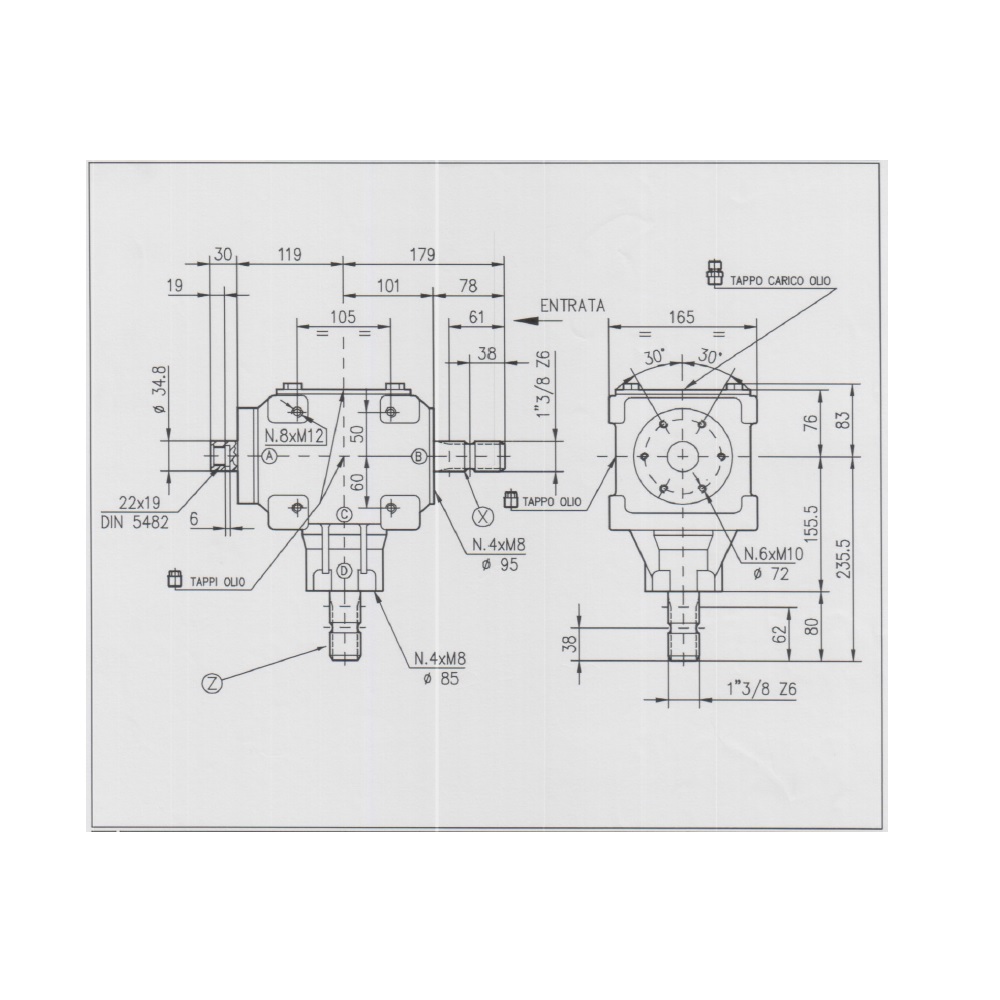

Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 21
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
