PRODUCT details
9.267.021.00

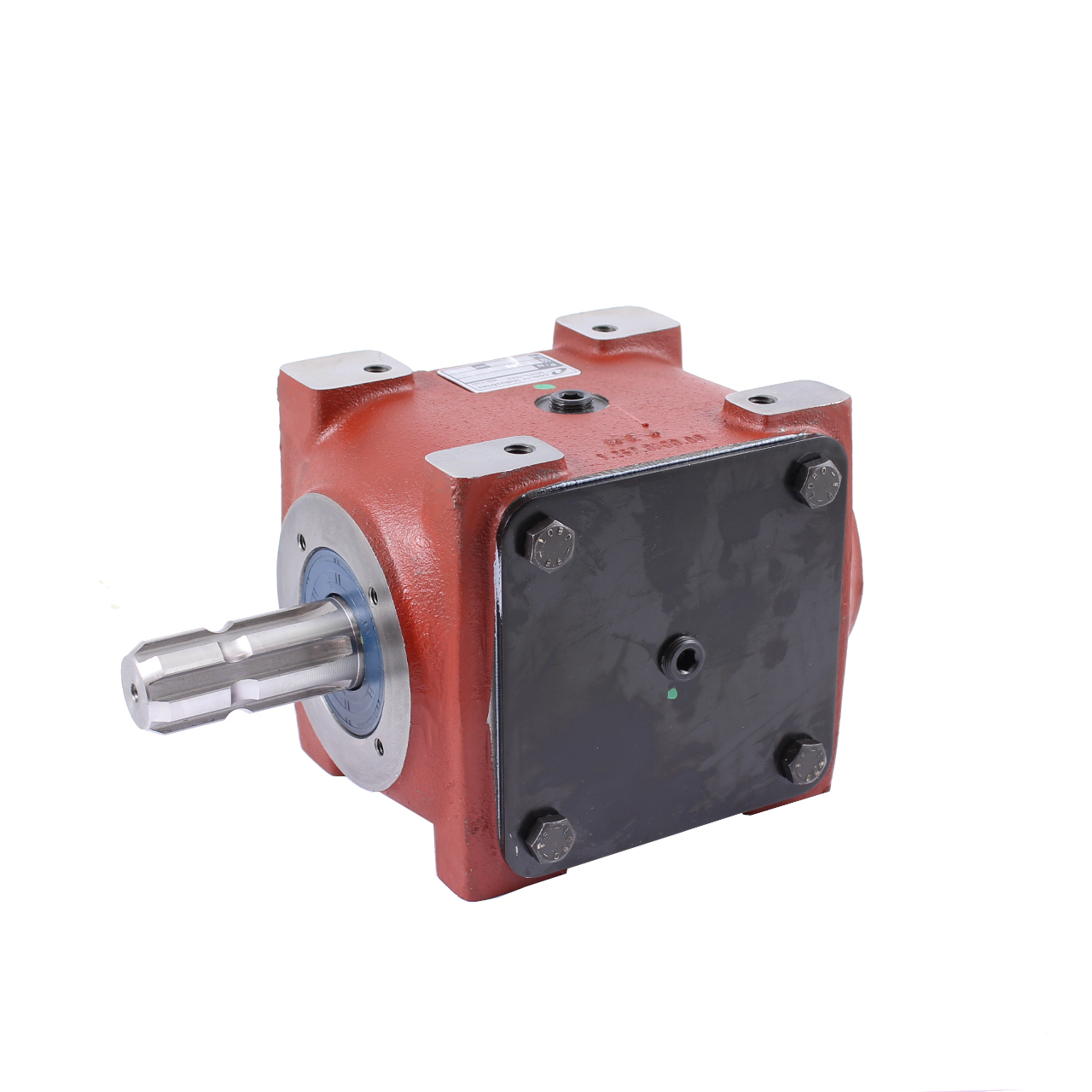

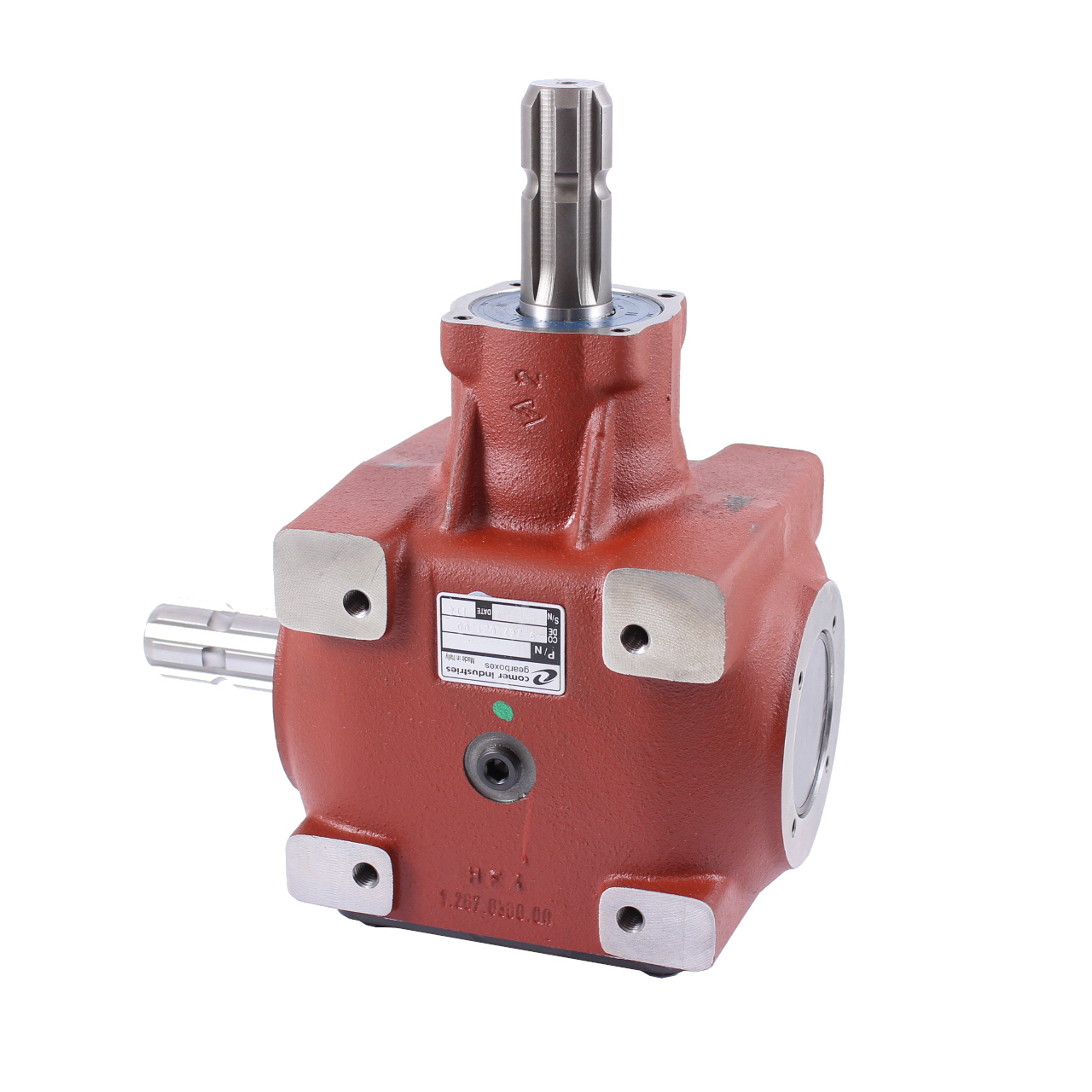

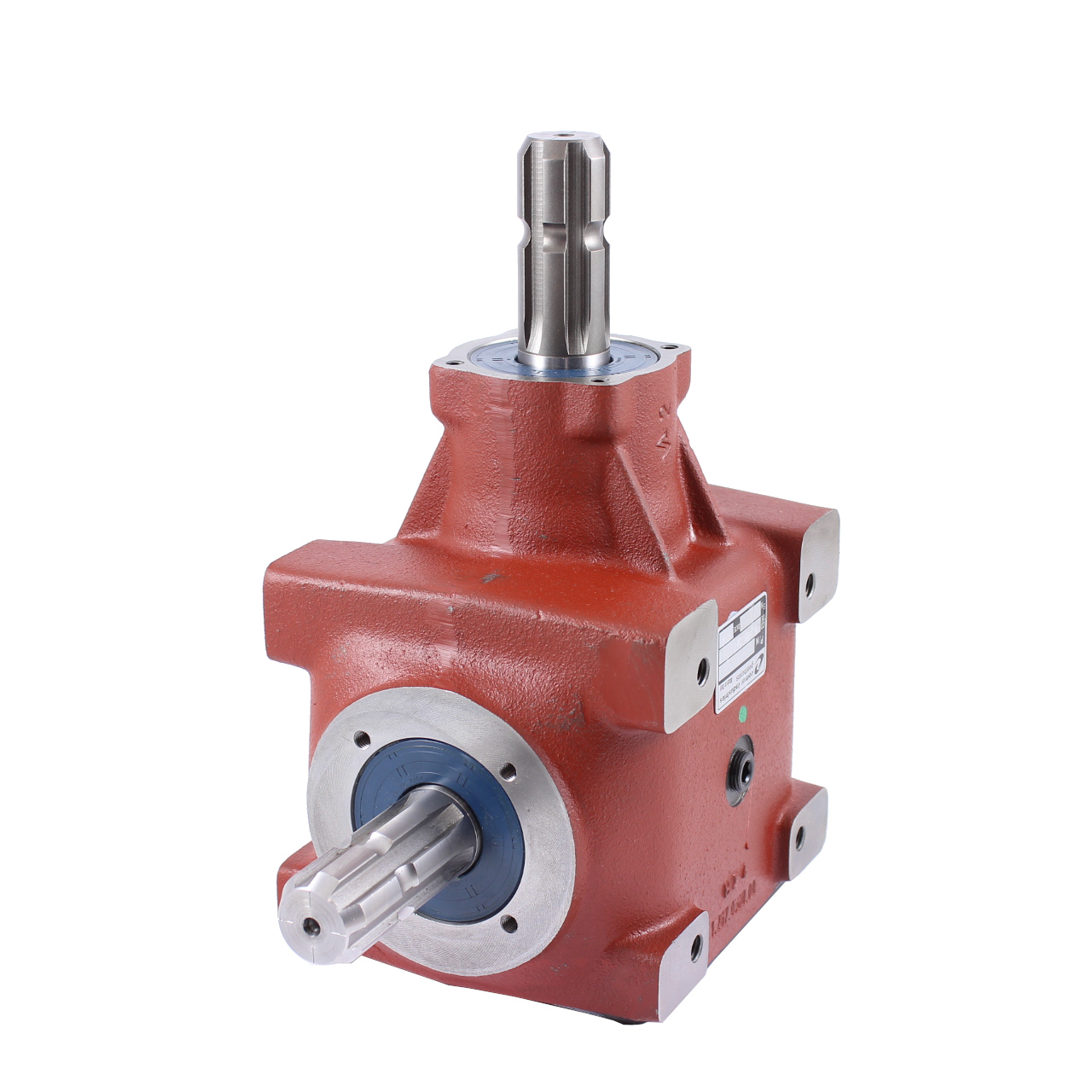

GEARBOX 1.92 M-22.1 R -15.1 T-27A
GEARBOX 1.92 M-22.1 R -15.1 T-27A
€ 618,96
LIMITED AVAILABILITY
Shipment Costs
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: COMER INDUSTRIES S.P.A.
Model: T-27A
Technical features
Type of application:
Reduction gear unit
Input power rate: 21Cv-15.1Kw (540RPM)
Speed increasing unit
Input power rate: 30Cv-22.1Kw (540RPM)
Ratio: 1,9
Outputs: 1
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 21
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
