PRODUCT details

9.304.019.00

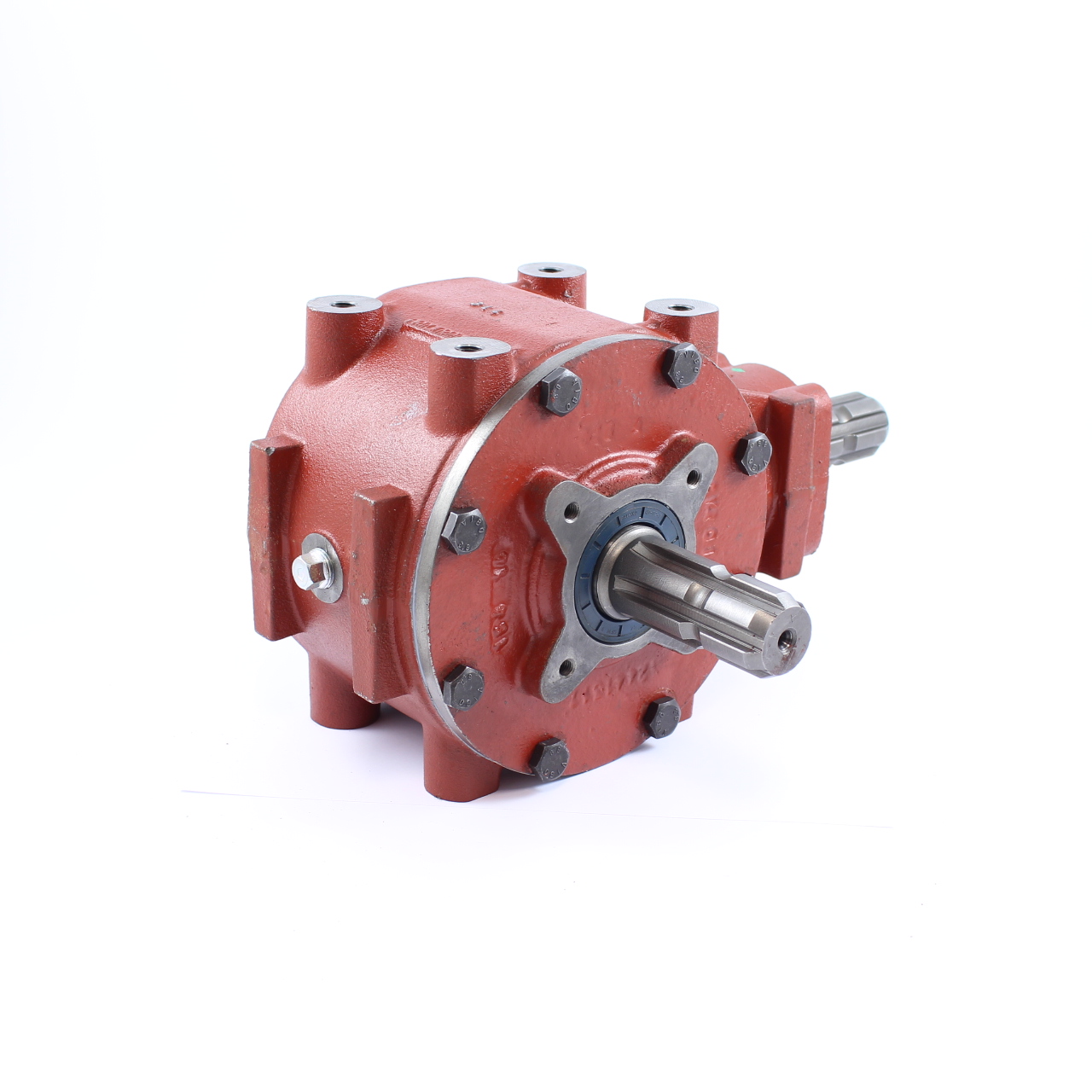

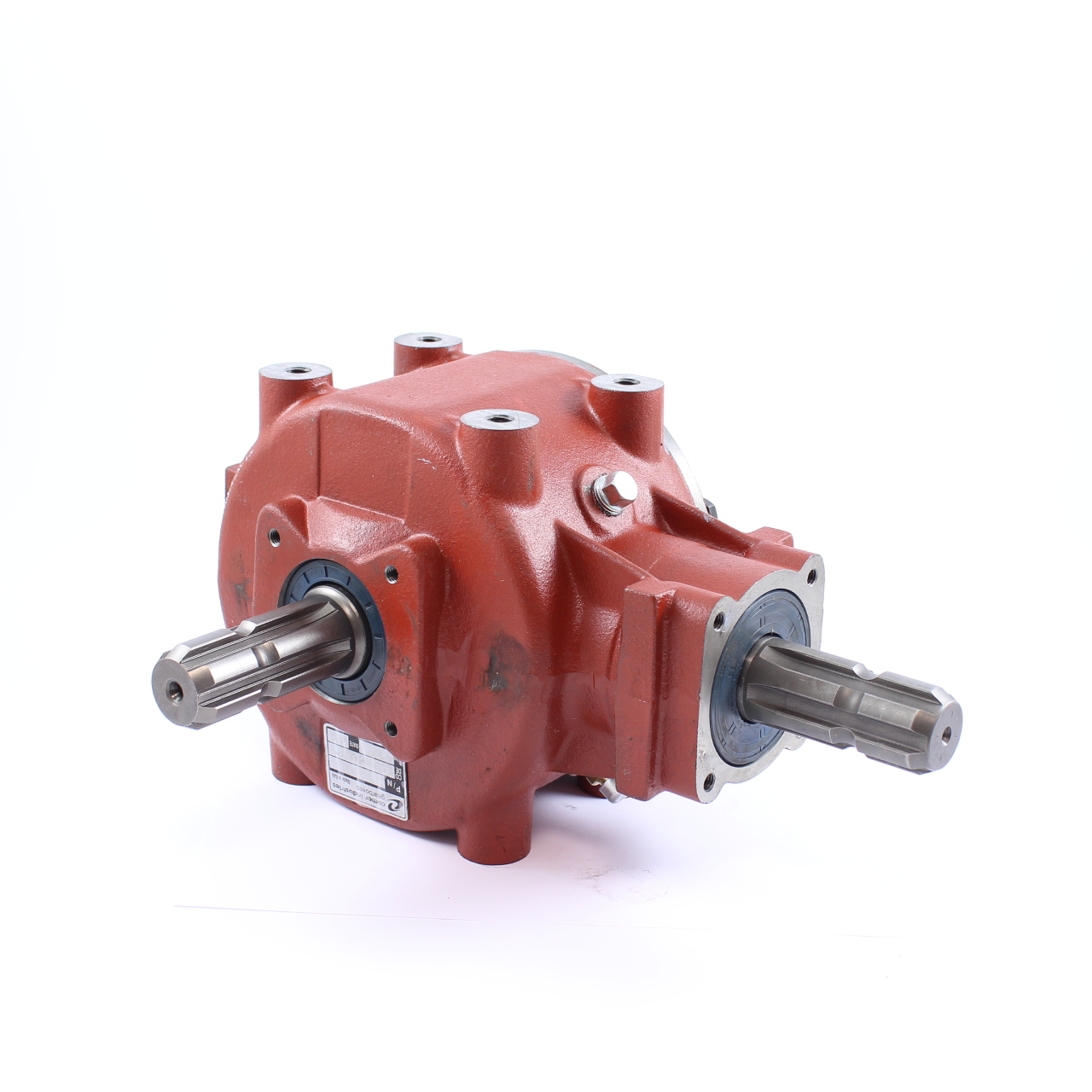

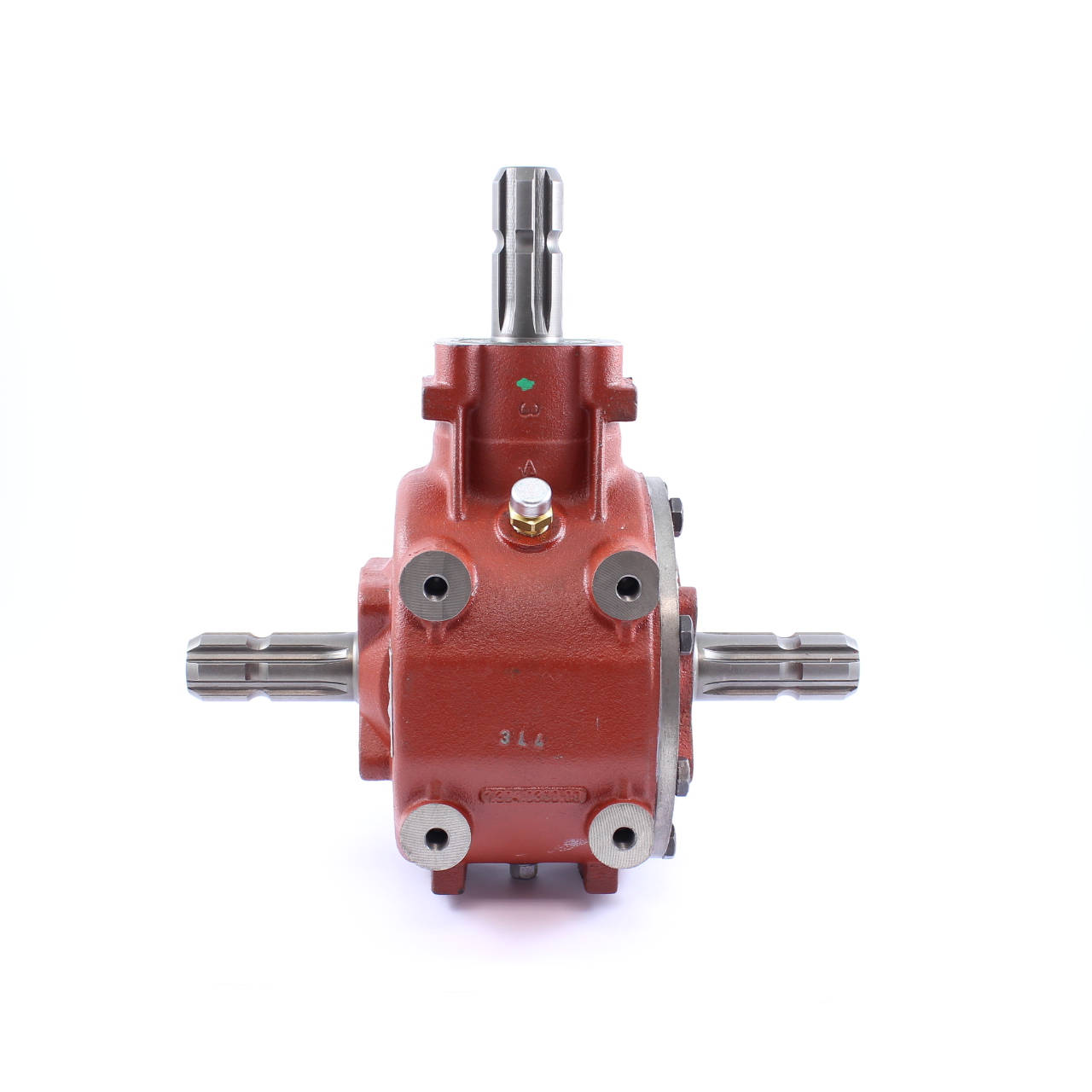

GEARBOX 4.5 M-28 R-11 T-304A

€ 1.030,26
LIMITED AVAILABILITY
Shipment Costs
  • Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details

MANUFACTURER: COMER INDUSTRIES S.P.A.

Model: T-304A

Technical features:

Type of application:
Reduction gear unit
Input power rate: 15Cv-11.3Kw (540RPM)

Speed increasing unit
Input power rate: 38Cv-28Kw (540RPM)

Ratio: 4,5

Outputs: 2

Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component

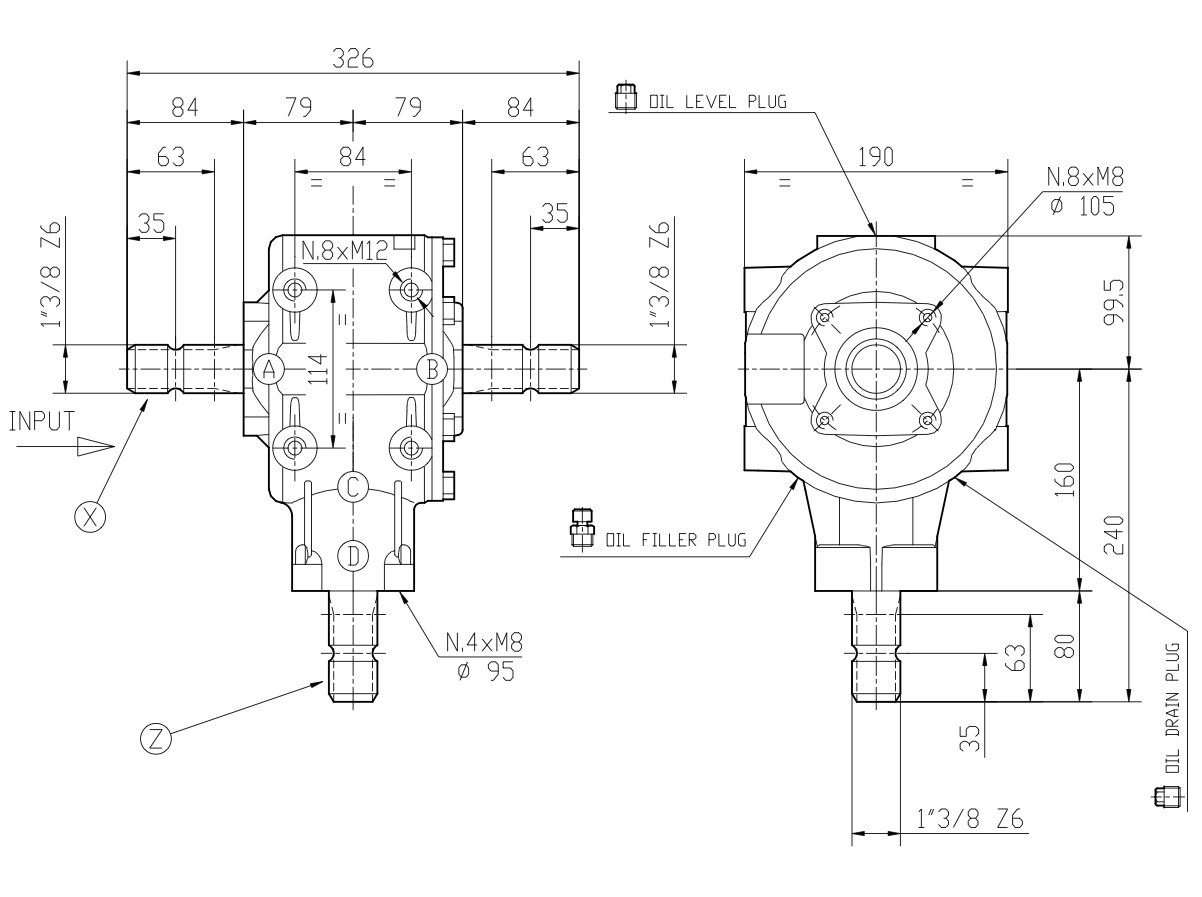

Shafts Rotation: Download data sheet to check the possible available rotation.

Material: Cast iron

Dry weight: Kg 19

Special features: Helicoidal bevel gears inside

Supplied without lubricant

• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)

List of combined products
Availability
LIMITED AVAILABILITY
8.0.1.00871

BALL BEARING 6208

€ 23,01
Availability
AVAILABLE
8.4.1.01141

PARALLEL KEY B 12x8x30

€ 3,95
