PRODUCT details

Manufacturer : M+S Hydraulic

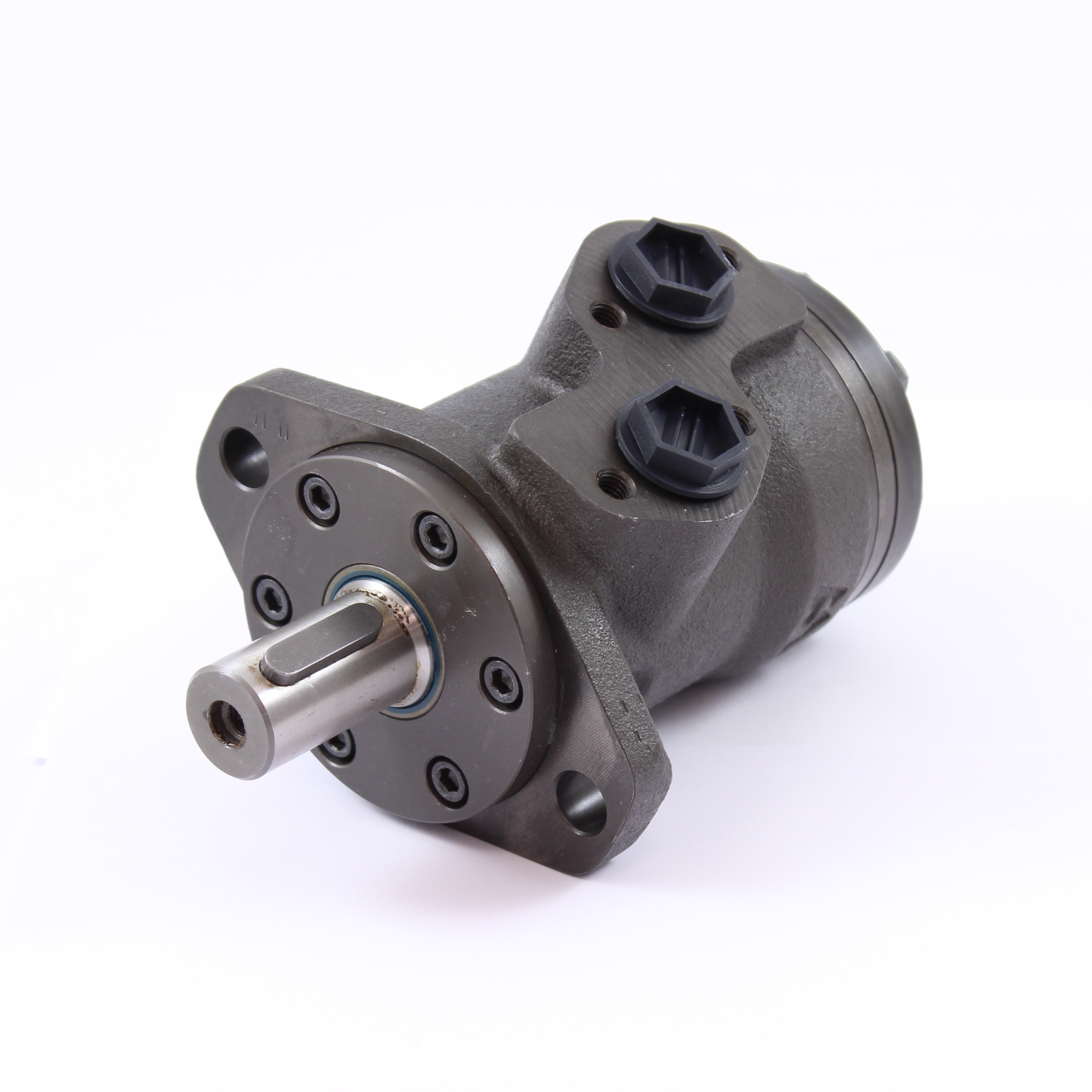

Orbit Hydraulic Motor (Gerotor) EPM050C


Technical features:

Displacement: 49,5 cc
Velocità Max (CONT./INT.*): 1210 rpm / 1515 rpm
Max Torque(CONT./INT.*/PEAK**): 9,4 daNm / 11,9 daNm / 14,3 daNm
Max Output (CONT./INT.*): 10,1 kW / 12,2 kW
Max Oil Flow (CONT./INT.*): 60 L/min. / 70 L/min.
Max pressure. (CONT./INT.*/PEAK**): 140 bar / 175 bar / 225 bar


* Intermittent operation (INT.): The permissible values may occur for max.10% of every minute.
**Peak load: the permissible values may occur for max. 1% of every minute.
