PRODUCT details
5717.004.8581.C

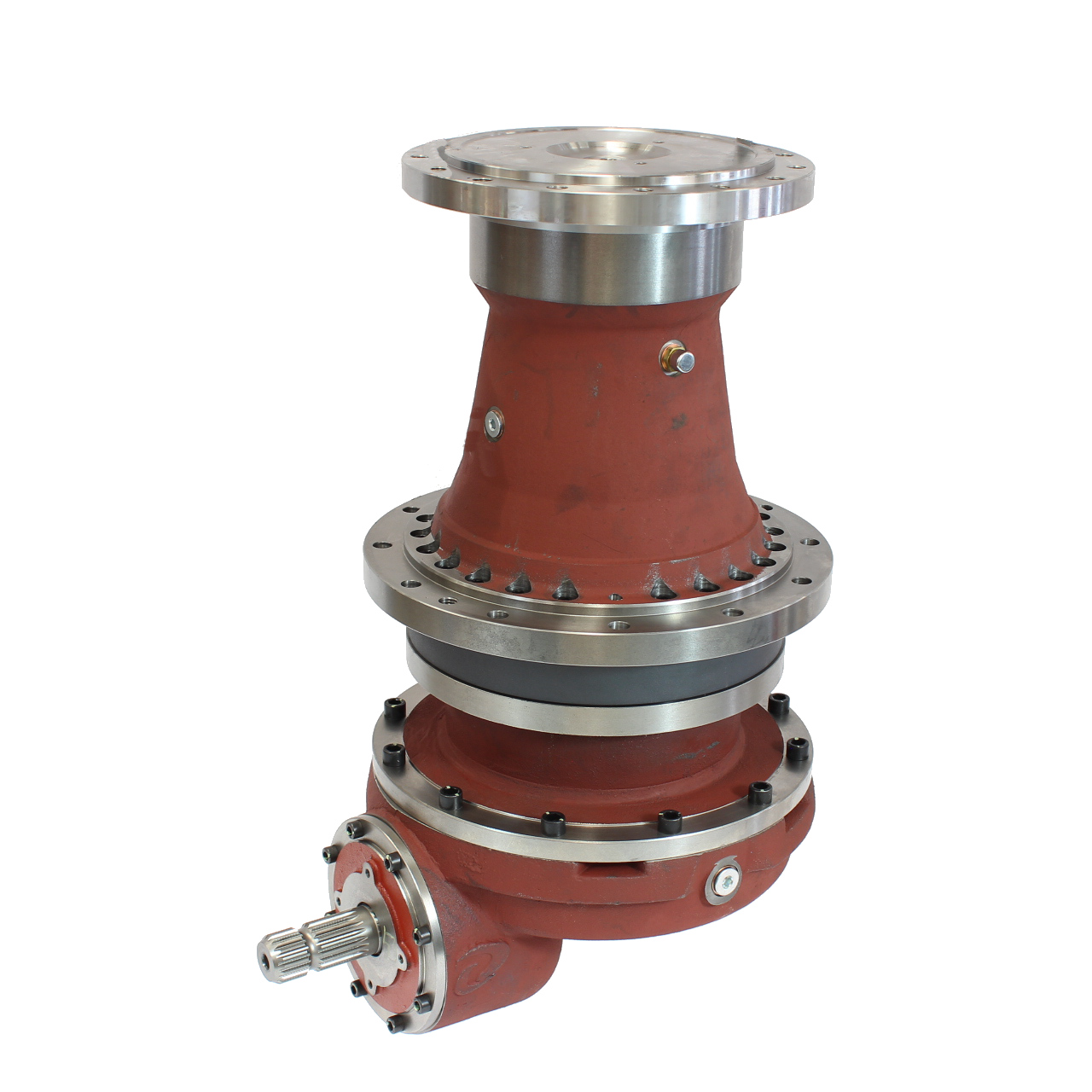

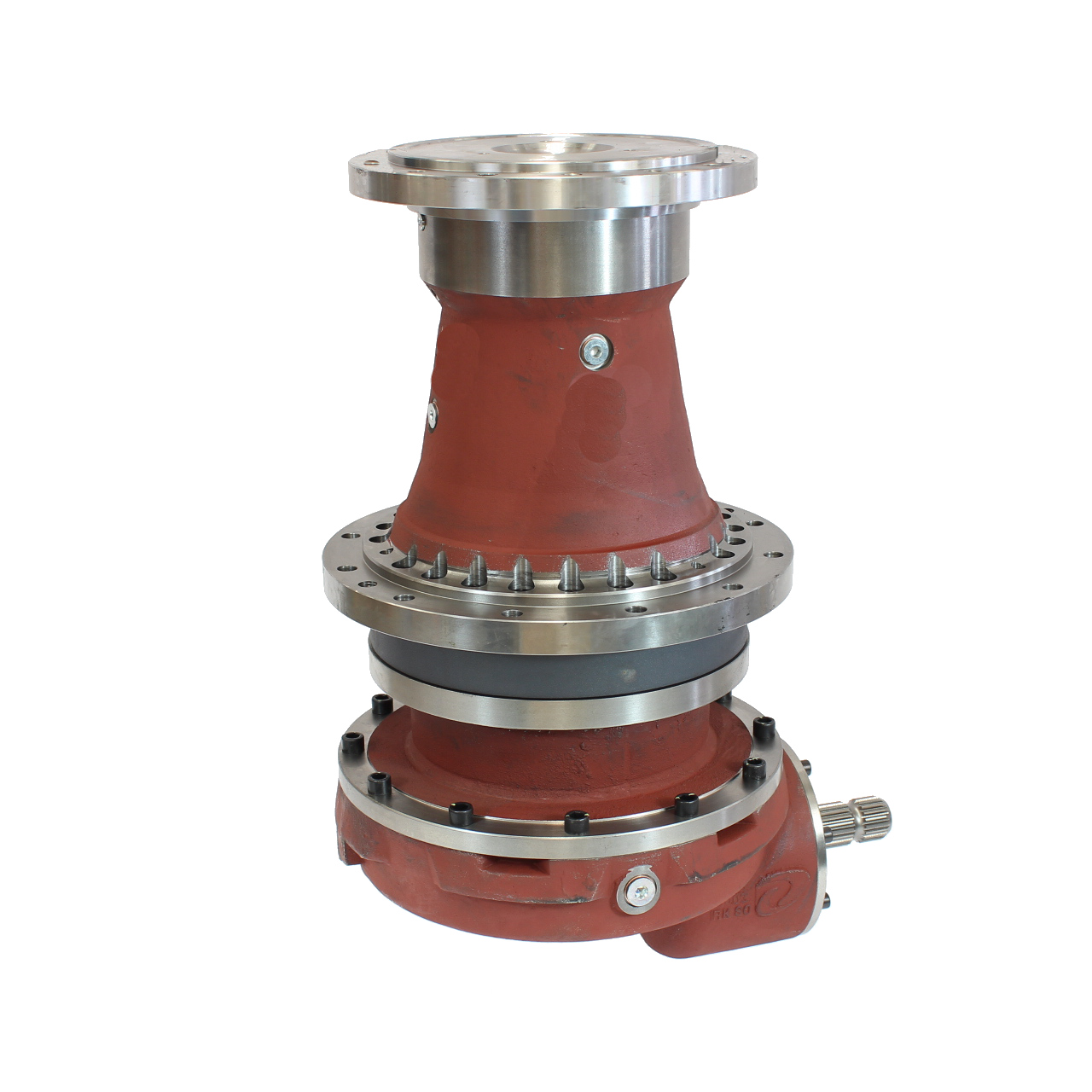

Planetary Gearbox PGA 1602 VM V37 R.21,1 E .1"3/4 Z20
Planetary Gearbox PGA 1602 VM V37 R.21,1 E .1"3/4 Z20
VAT Tax Excluded
€ 4.089,00
COMING SOON
Shipment Costs
Shipping Calculation
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: Comer Industries S.p.A.
Model: PGA 1602 VM 21.1 E.1"3/4 Z20 V37
Technical features:
Planetary Gearbox with bevel gear
Typical Application :
Trailed Vertical Feed Mixers with Single or Double vertical auger, Biogas Stationary Machines
Ratio: 1/21.1
Continuous Admissible Torque: 12010 Nm
Maximum torque (brief time or start-up peaks): 24020 Nm
Bevel gear With Input Through Shaft
RPM Input: 1000 rpm
Output RPM: 47.4 rpm
Supplied without lubricant
Indicatively the capacity of the machines:
Single Vertical Auger Machine Capacity: 8/10/12/14 cubic meters
Model: PGA 1602 VM 21.1 E.1"3/4 Z20 V37
Technical features:
Planetary Gearbox with bevel gear
Typical Application :
Trailed Vertical Feed Mixers with Single or Double vertical auger, Biogas Stationary Machines
Ratio: 1/21.1
Continuous Admissible Torque: 12010 Nm
Maximum torque (brief time or start-up peaks): 24020 Nm
Bevel gear With Input Through Shaft
RPM Input: 1000 rpm
Output RPM: 47.4 rpm
Supplied without lubricant
Indicatively the capacity of the machines:
Single Vertical Auger Machine Capacity: 8/10/12/14 cubic meters
