Scheda PRODOTTO

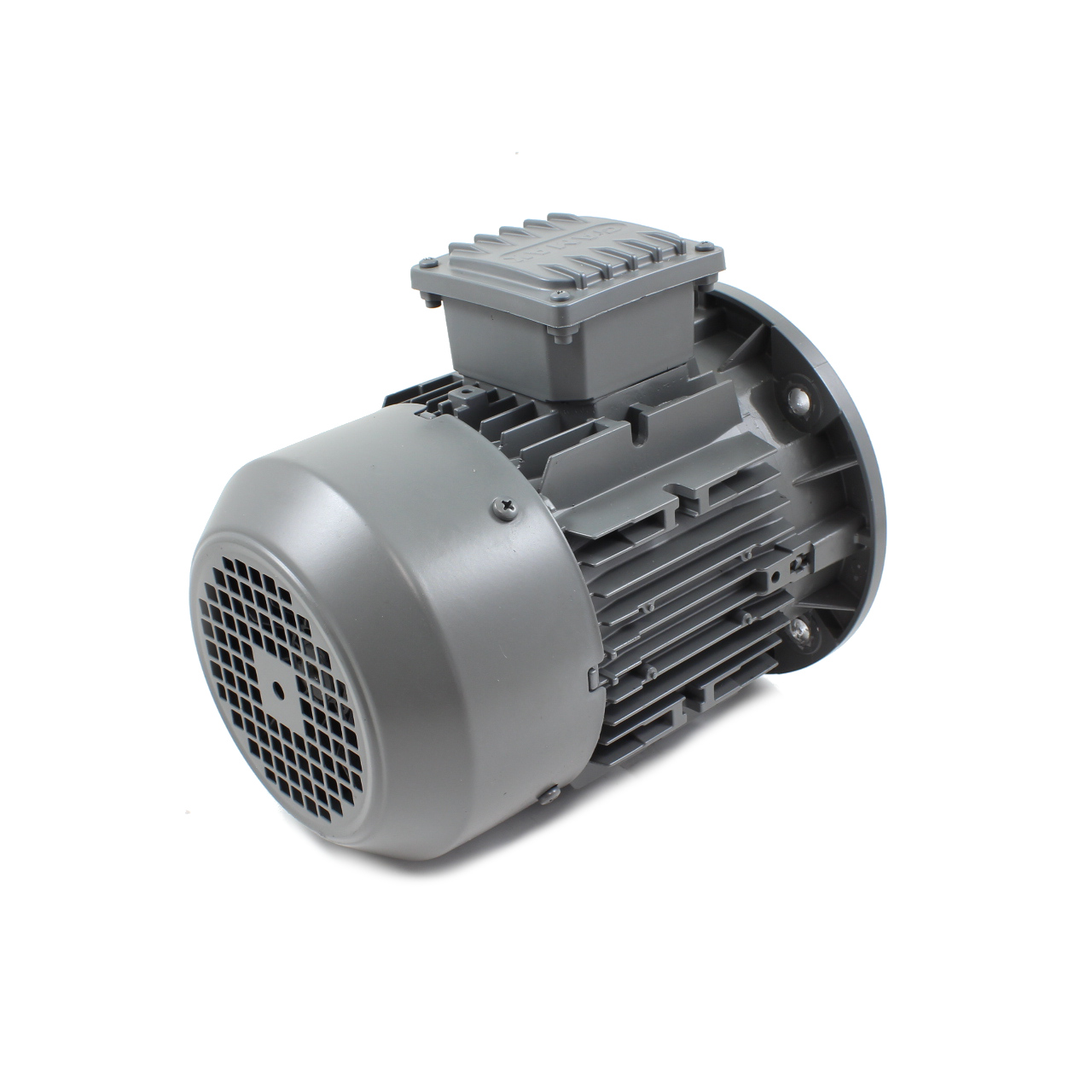

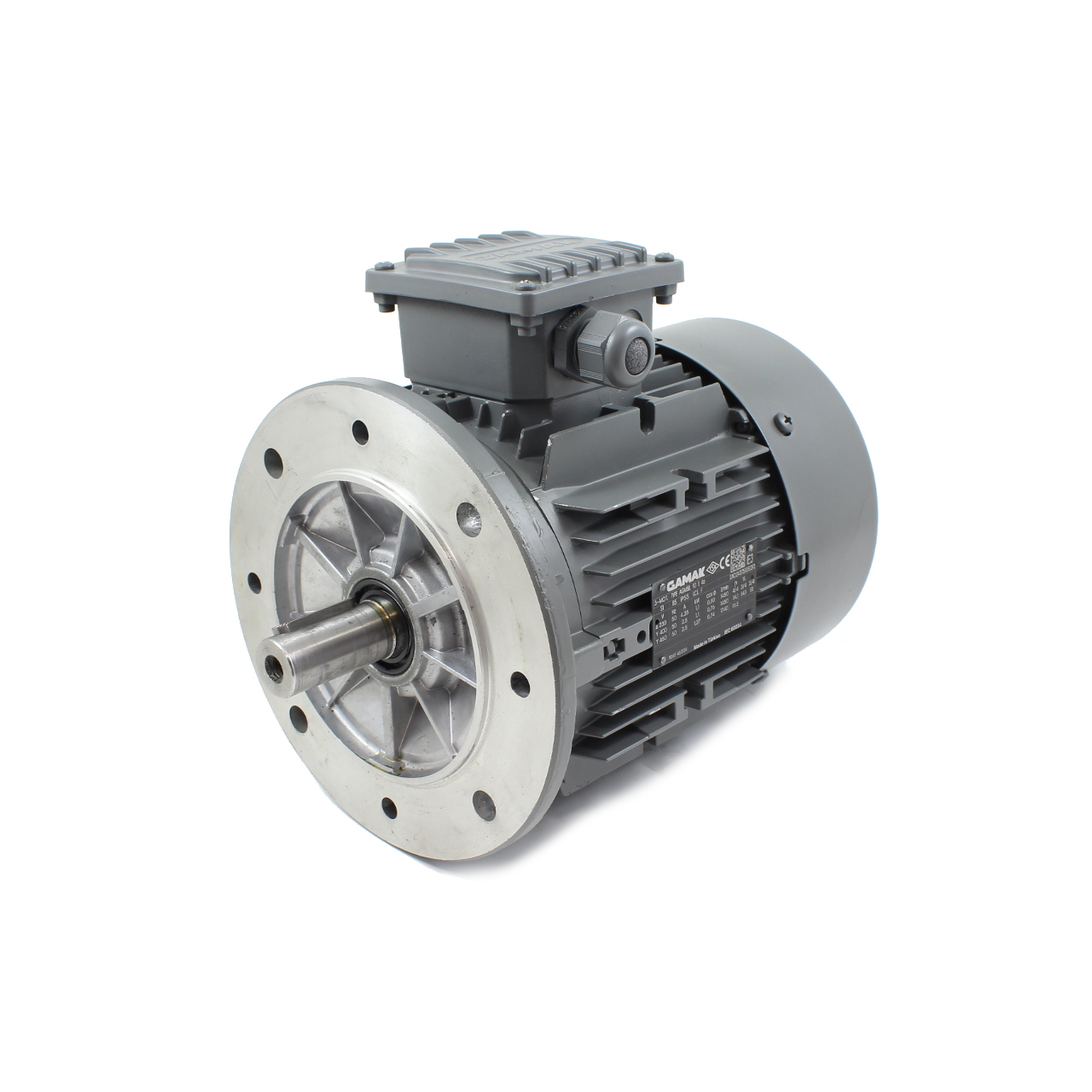

MOT.EL. GAMAK AGM 90S4 B5 1.1KW 230/400-50 IE3

RICHIEDI INFORMAZIONI

CHIAMACI AL +39 0543 77 95 18

SCARICA LA SCHEDA PRODOTTO

251GAGM90S4B53

MOT.EL. GAMAK AGM 90S4 B5 1.1KW 230/400-50 IE3

iva esclusa

€ 196,00

IN ARRIVO

Costi di spedizione

Calcolo della spedizione

Trasporto a mezzo corriere Executive/GLS 0,00 €

Dettaglio prodotto

MANUFACTURER: GAMAK

FEATURES:

Electric Motor: GAMAK AGM 90S4 B5 1.1KW 230/400-50 IE3
Input: IEC90 B5
Motor/Motoinverter: Motor
Motor: Three-phase
Size: 090
Poles: 4
Regulations: CE
Casing material: Aluminum

Voltage: 230/400 V
Power: 1,1 kW
Frequency: 50 Hz
Protection Rating: IP55
Insulation reating: F
Mounting: B5

Dimension shaft (DE): Ø24x50
Dimension flange: Ø200
Duty: S1
Coooling: Self-ventilated
Winding Separators: Yes

Bearing: 6205zz

Efficiency class - IE3

Paint: RAL 7031
