PRODUCT details
GR.CARC.PR.NMRV-P063 25, 0 D25 U MV
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
MANUFACTURER: Motovario S.P.A.
FEATURES:

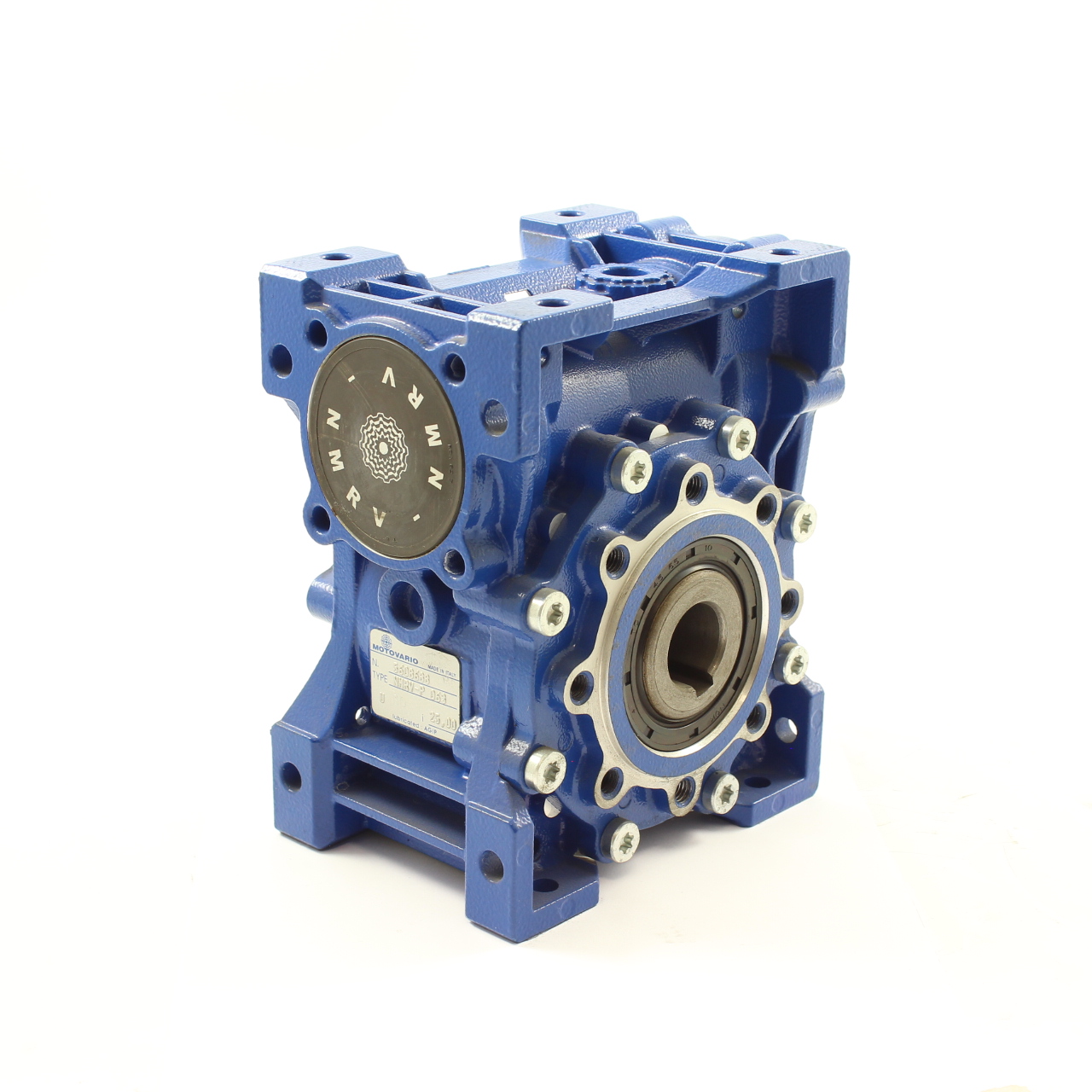

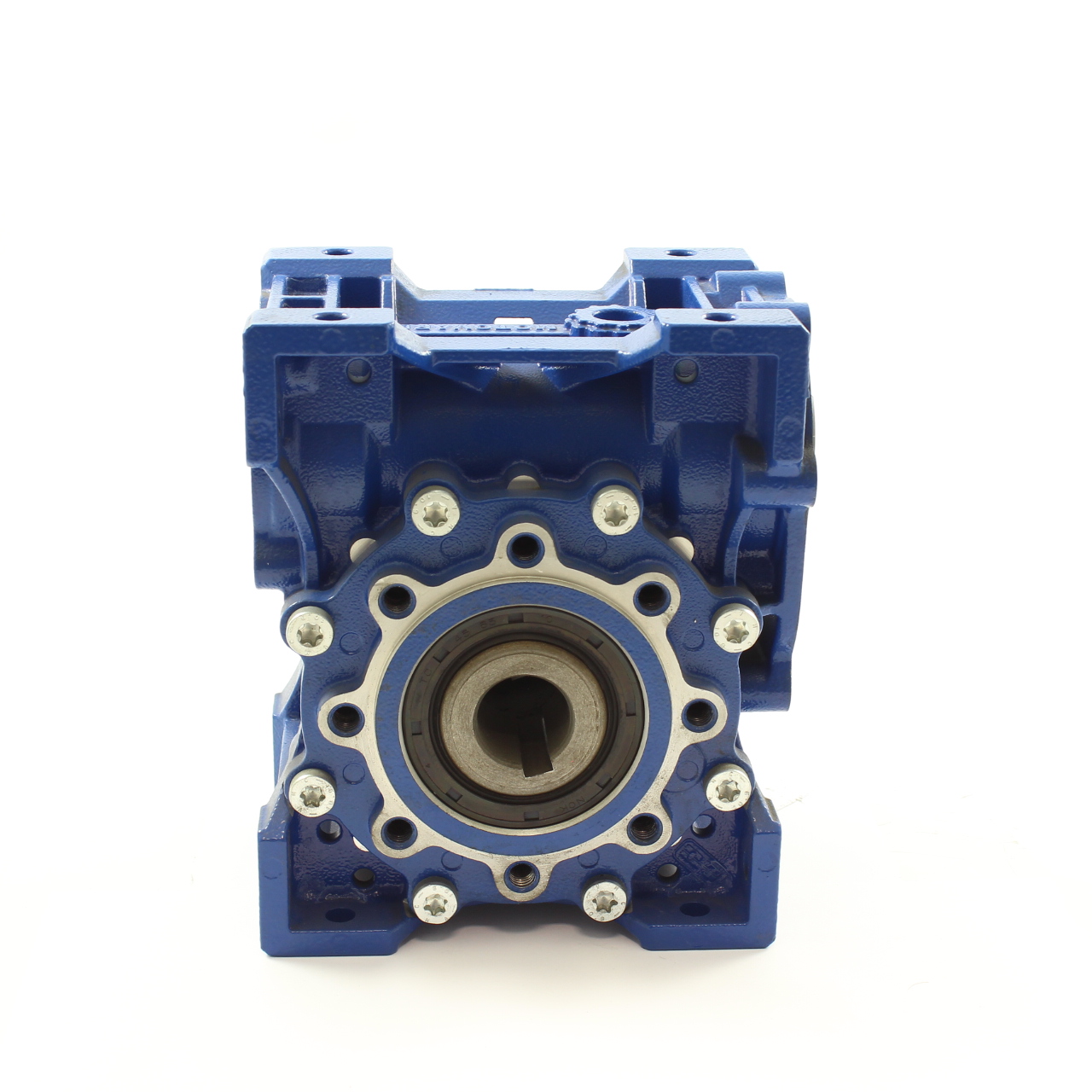

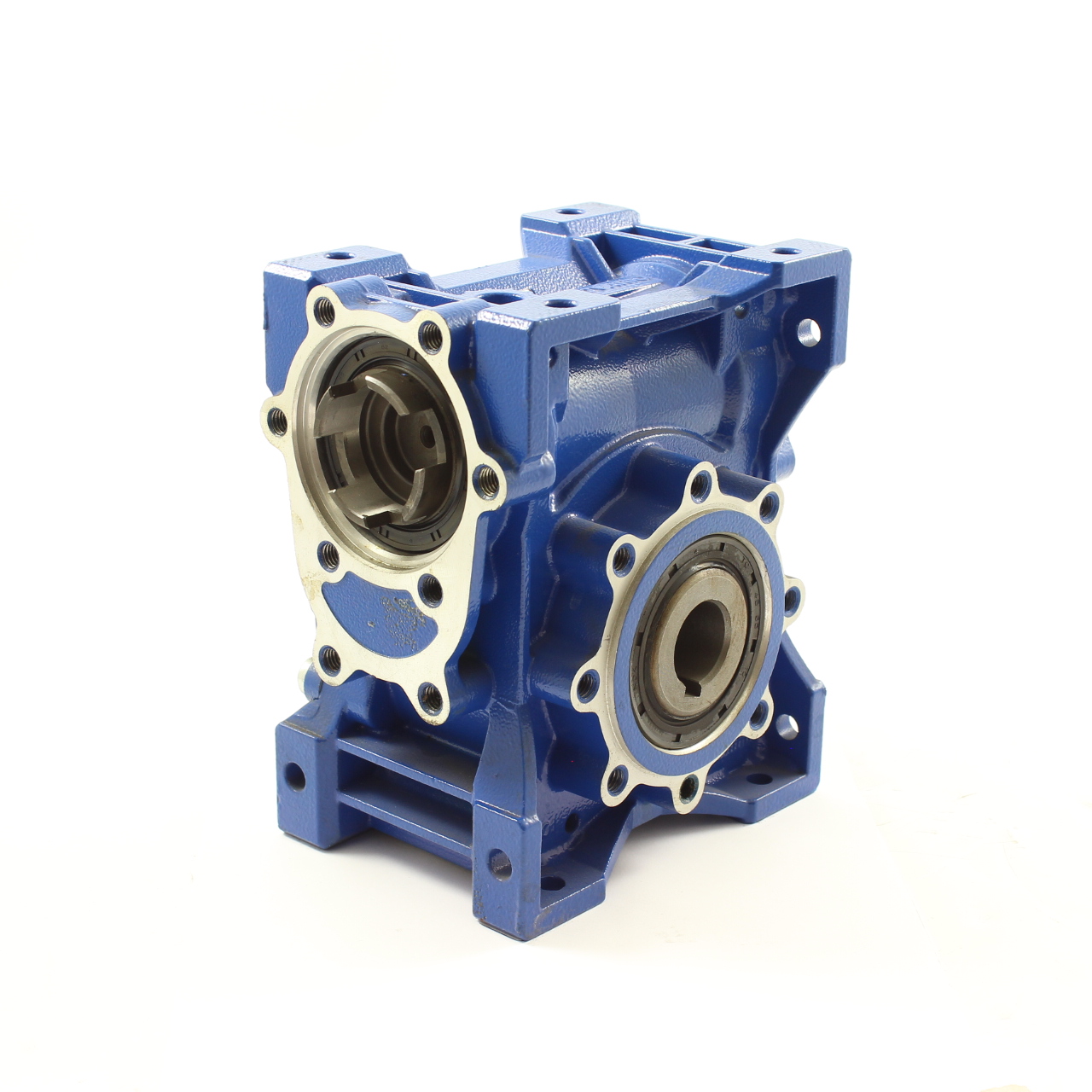

Casing kit NMRV-P063 25,0 D25 U MV
Worm Gearbox: NMRV Power
Size: 063
Ratio (i): 25
Hollow output shaft dim.: D.25
MODULARITY
The NMRVpower series allows to a single basic unit to install bush and flange that correspond to different motor sizes.
The basic unit can be purchased alone if it is a replacement of another NMRV-Power Series VSF, reusing the currently installed bushing and flange.
For the purchase of a new complete unit, it is instead necessary to purchase the bushing and flange relating to the motor to be installed.
The same applies to the use of HW pre-stages
Mounting position: U - Universal
Oil plugs: No plugs (Standard)
Supplied with lubricant ENI TELIUM VSF.
Output oil seal: NBR-Nitrile
Input oil seal: ACM-Polyacrylate
Output bearings: Ball bearings
Input bearings: Ball-Ball bearings
Lubrication: Eni Telium VSF 320
Paint: Ral 5010 blue
GR.FLANGE USC.VSF063 FA 180 VER
GR.FLANGE USC.VSF063 FB 180 VER
GR.FLANGE USC.VSF063-BA 52 FC D200 VER
GR.FLANGE USC.VSF063 FD 200 VER
GR.FLANGE USC.VSF063 FE 160 VER
GR.TORQUE ARM VSF0 63-BA52
GR.COPRIHUB CROWN WHEEL VSF 063
GR.CARC.PR.HW030 5,45 19 U MV
KIT FLANGE PAM NMRV-P06 3/075 D105 B14 VER
KIT FLANGE PAM NMRV-P06 3/075 D.120 B14
KIT FLANGE PAM NMRV-P06 3/075 D140 B14 VER
