PRODUCT details
9.265.801.10

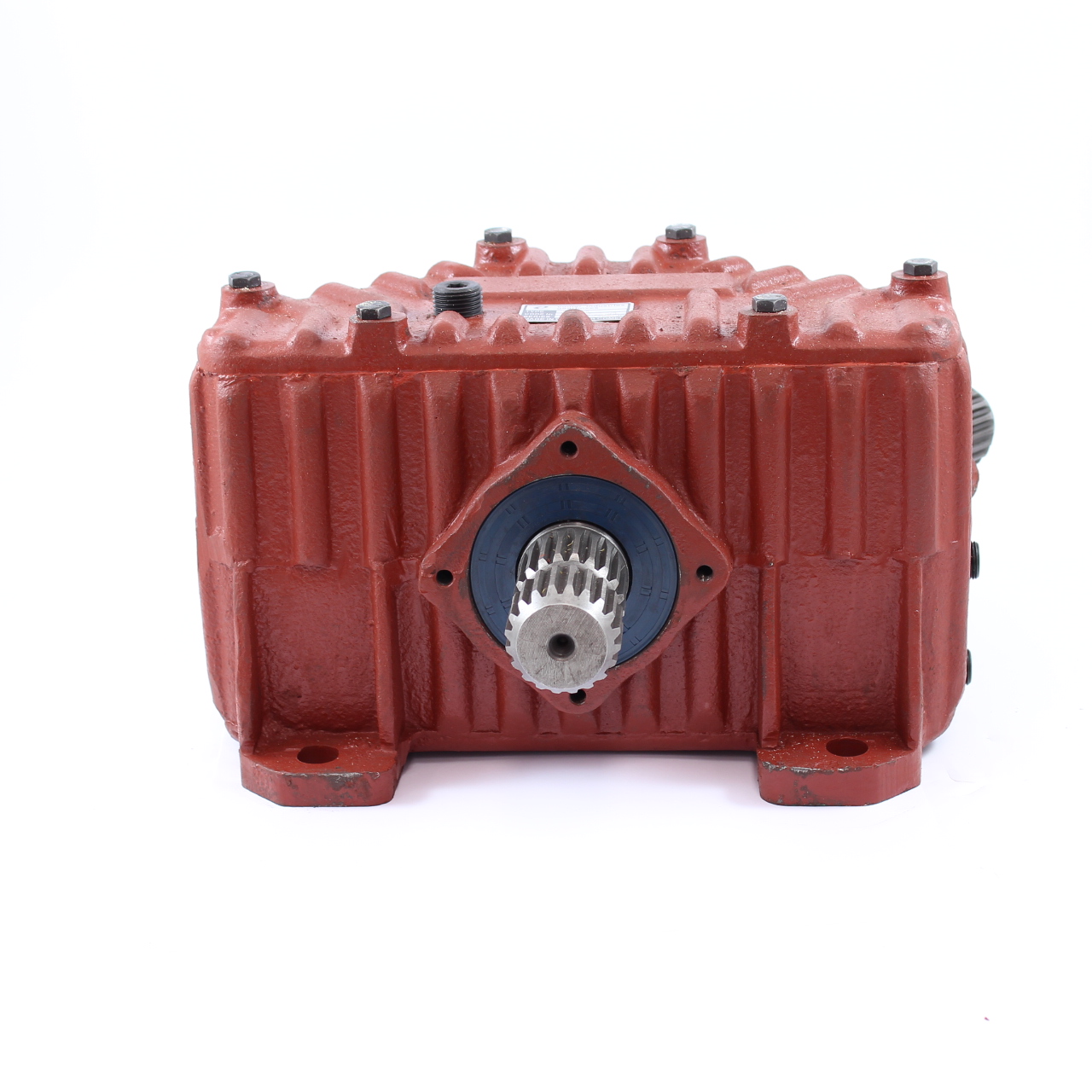

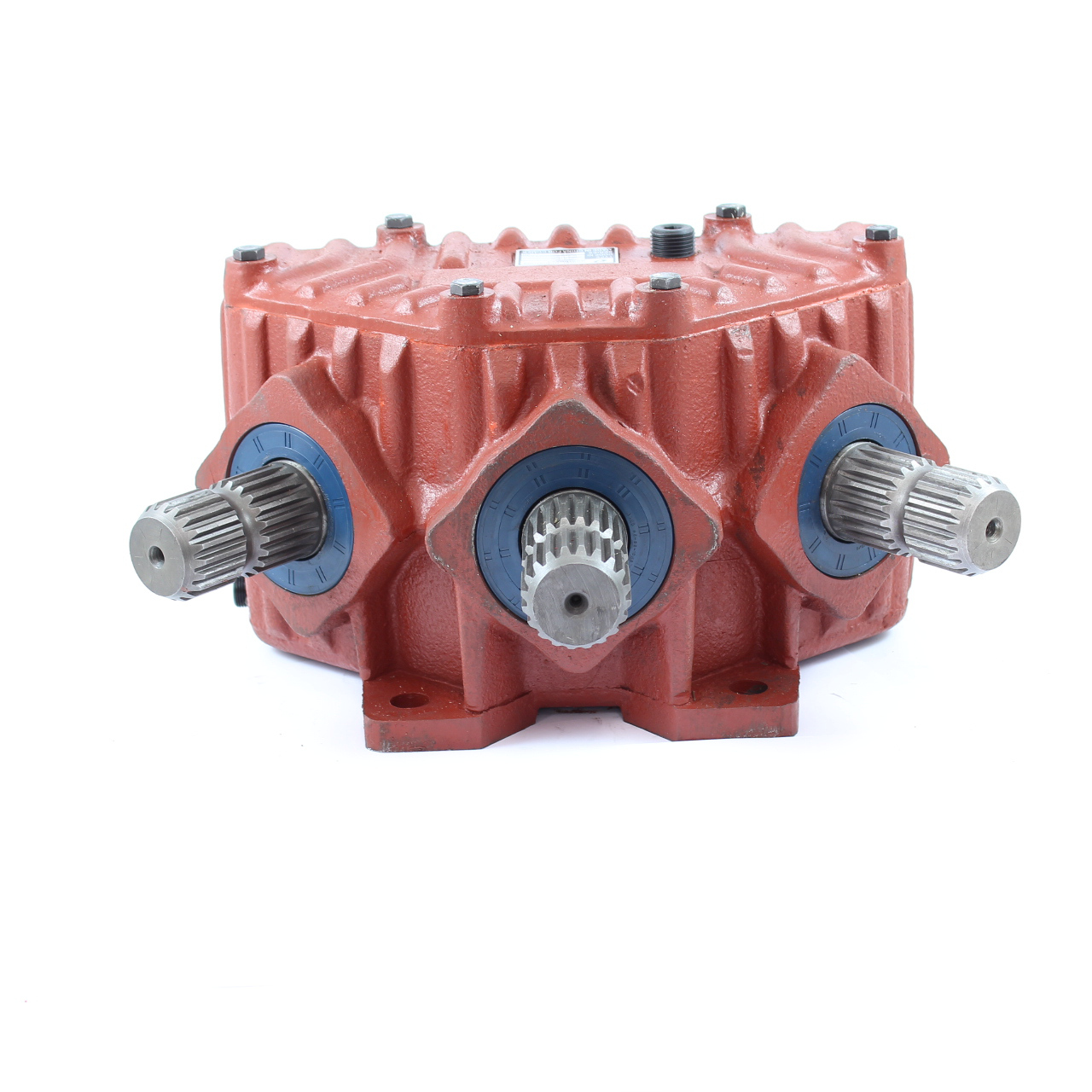

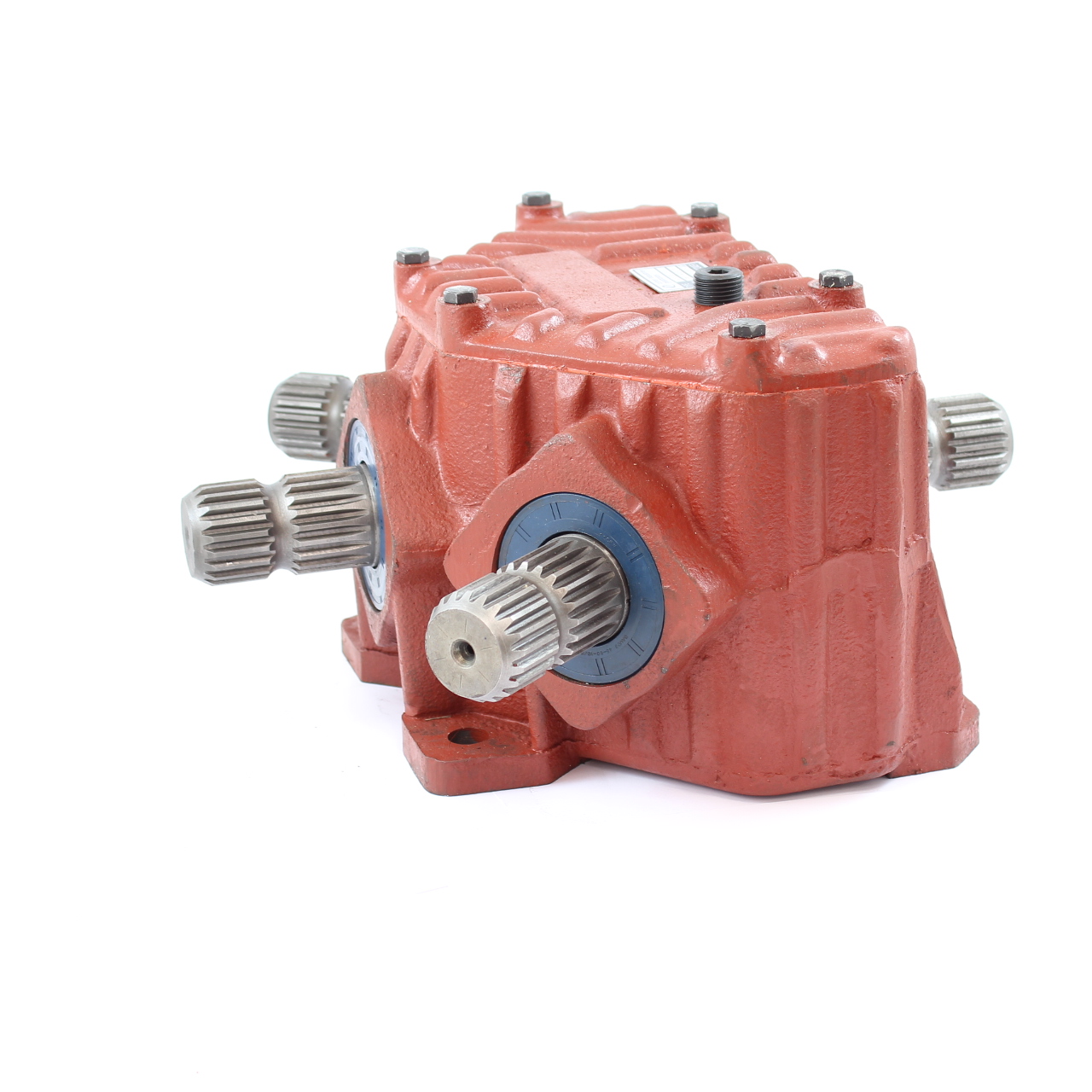

GEARBOX 1.2 M-93 T25J 1:1/1:1.2
GEARBOX 1.2 M-93 T25J 1:1/1:1.2
€ 868,85
LIMITED AVAILABILITY
Shipment Costs
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: COMER INDUSTRIES S.P.A.
Model: T-25J
Technical features
Type of application:
Speed increasing unit
Input power rate: 125Cv-93,1Kw (540RPM)
Ratio: 1,2 (1:1 SULL'ASSE X)
Outputs: 3
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component

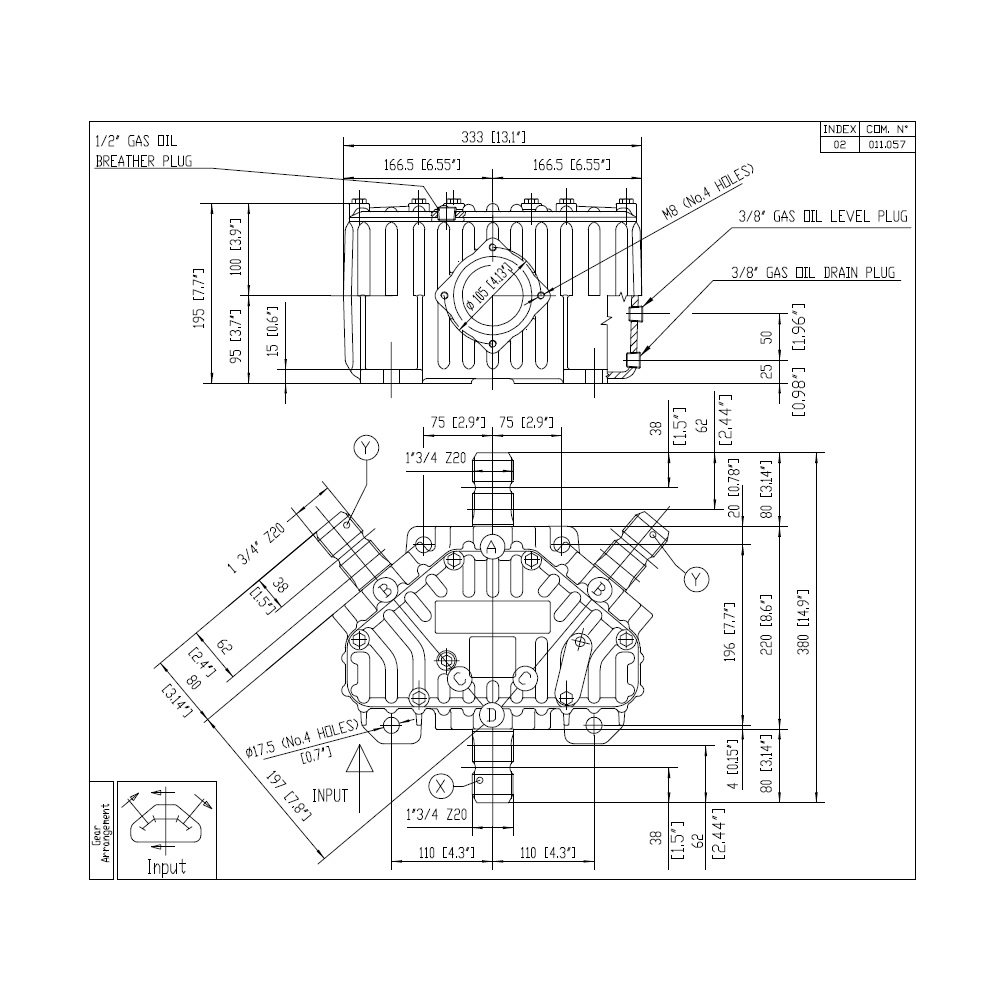

Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 39,5
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
