PRODUCT details
9.281.000.00

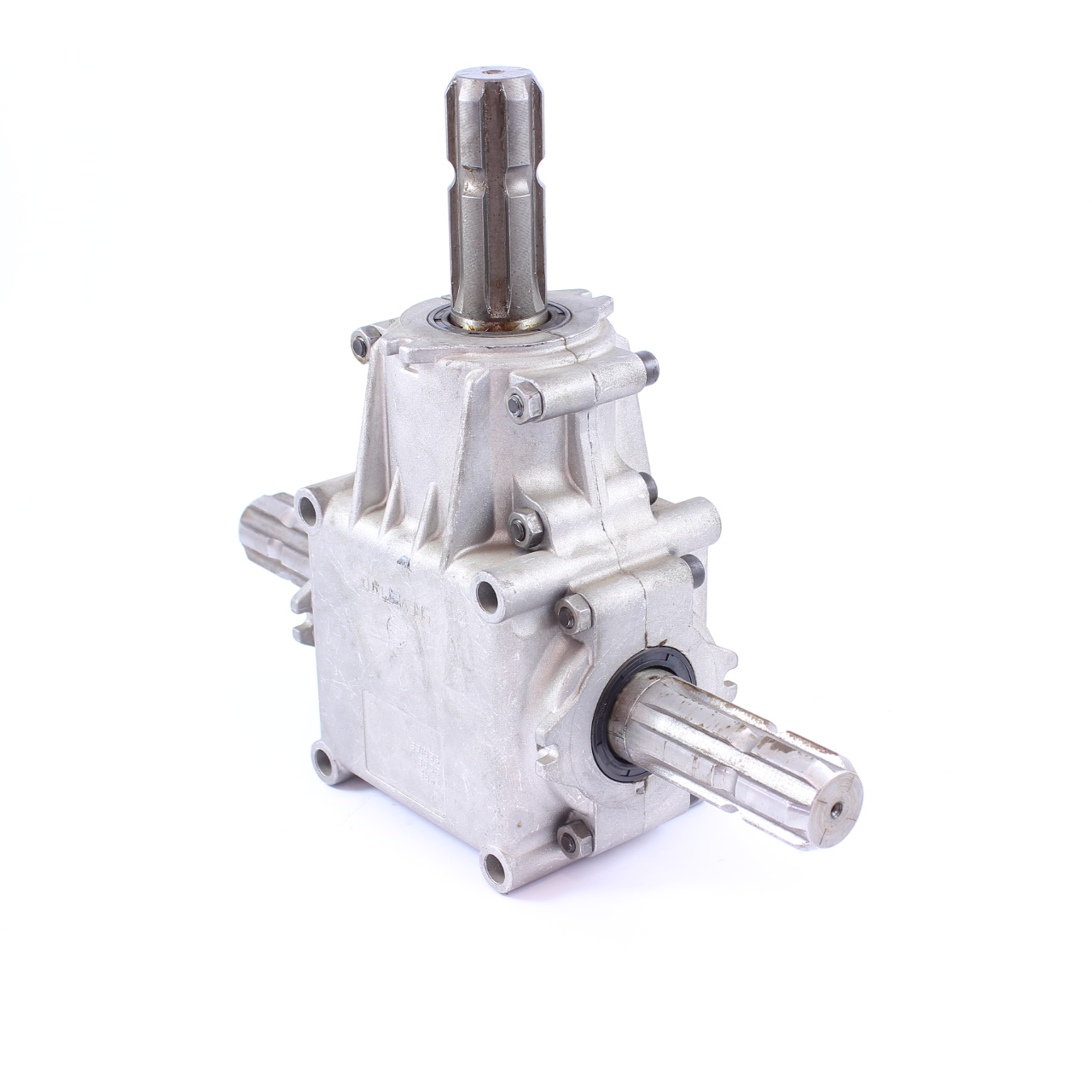

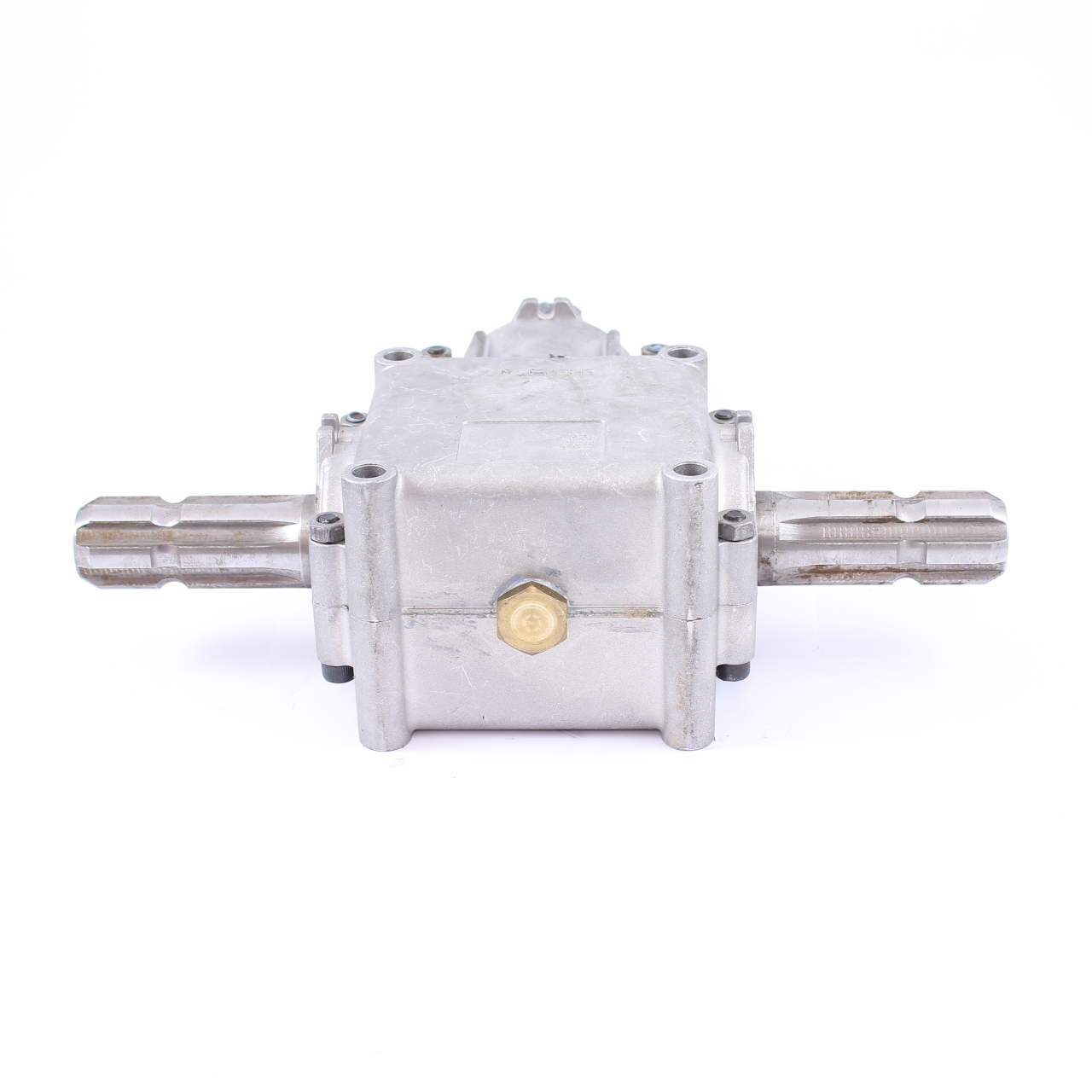

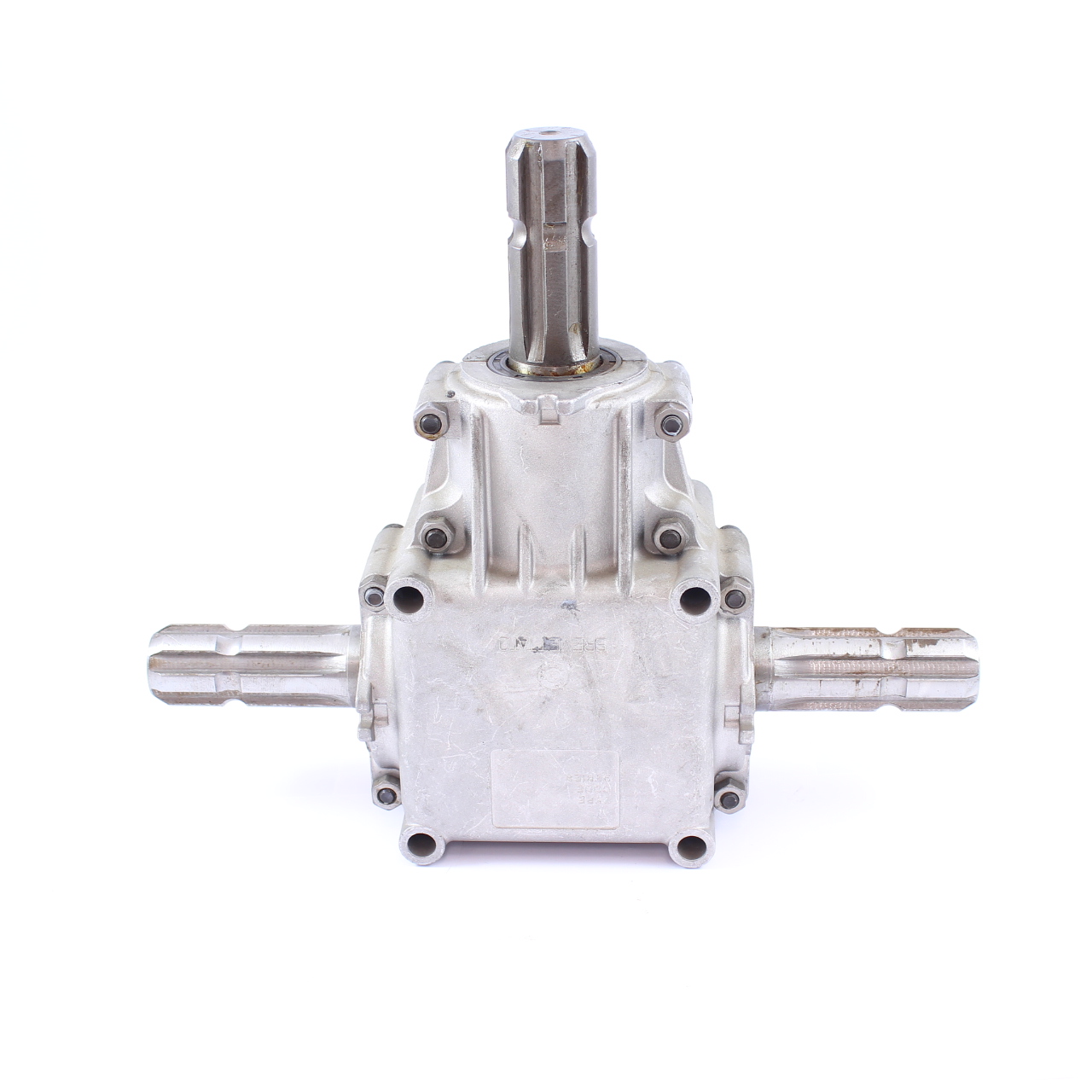

GEARBOX 1.46 M-14.7 R -11.5 T-281A
GEARBOX 1.46 M-14.7 R -11.5 T-281A
€ 464,63
LIMITED AVAILABILITY
Shipment Costs
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: COMER INDUSTRIES S.P.A.
Model: T-281A
Technical features
Type of application:
Reduction gear unit
Input power rate: 16Cv-11.5Kw (540RPM)
Speed increasing unit
Input power rate: 20Cv-14.7Kw (540RPM)
Ratio: 1,46
Outputs: 2
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Aluminum
Dry weight: Kg 7
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
