PRODUCT details
9.267.063.00

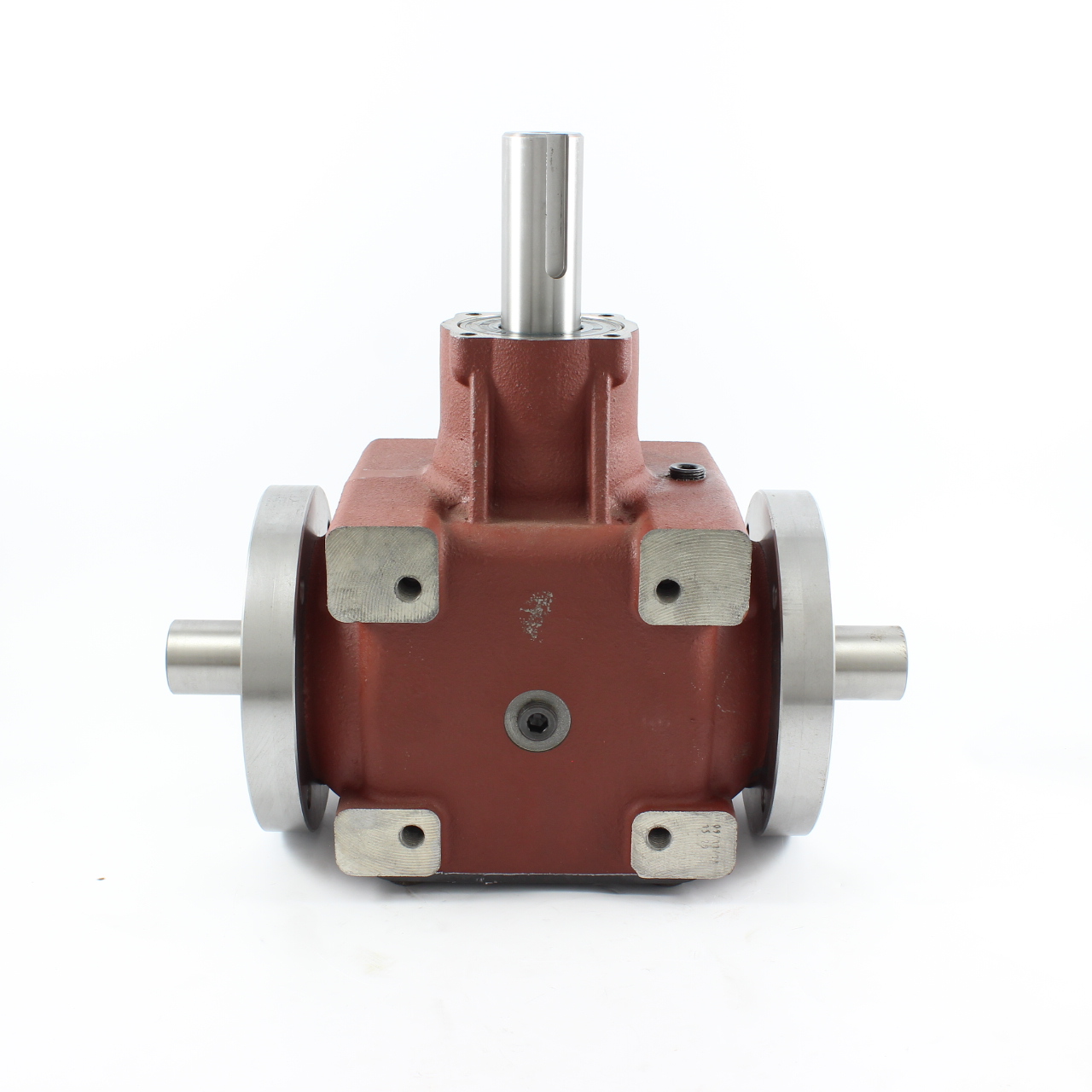

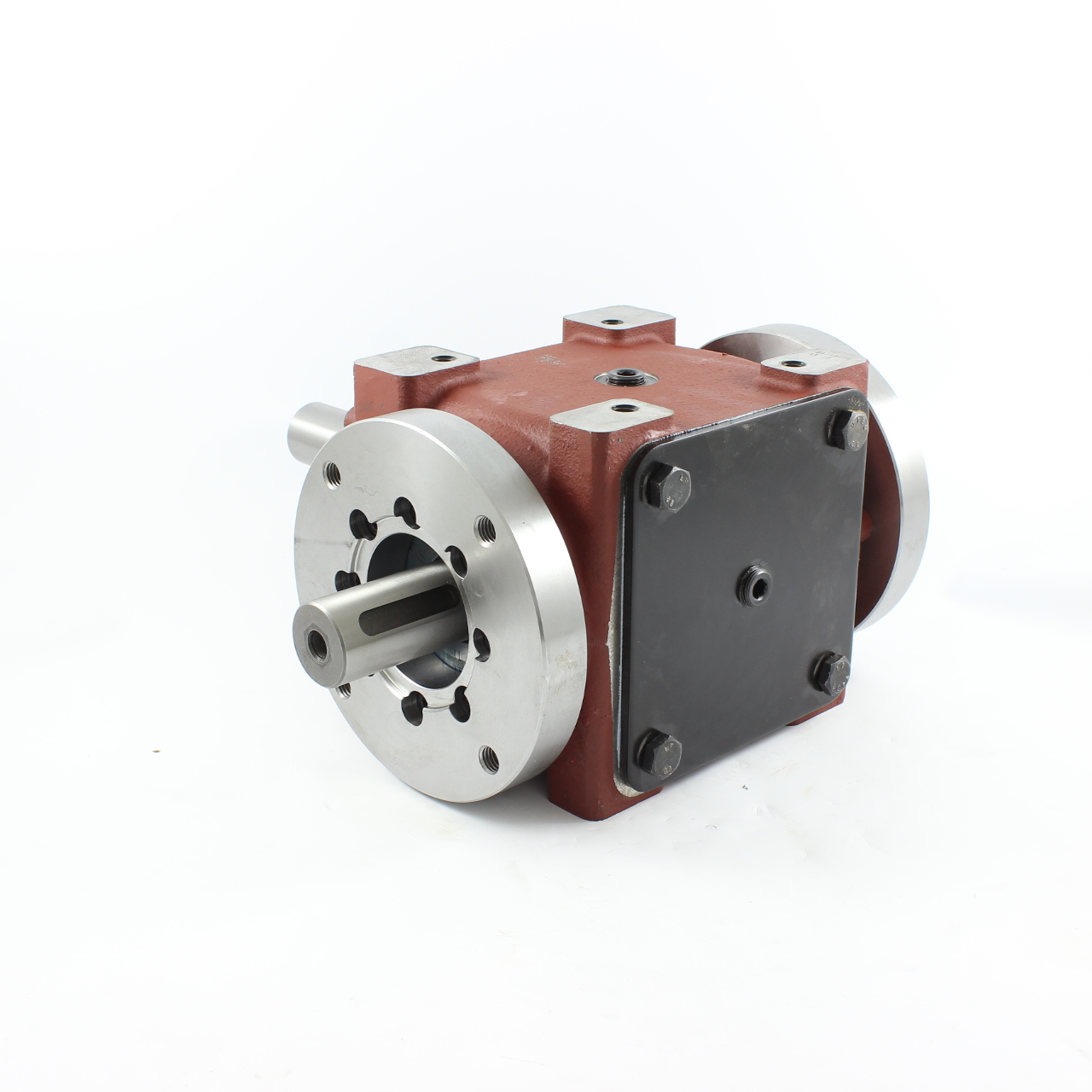

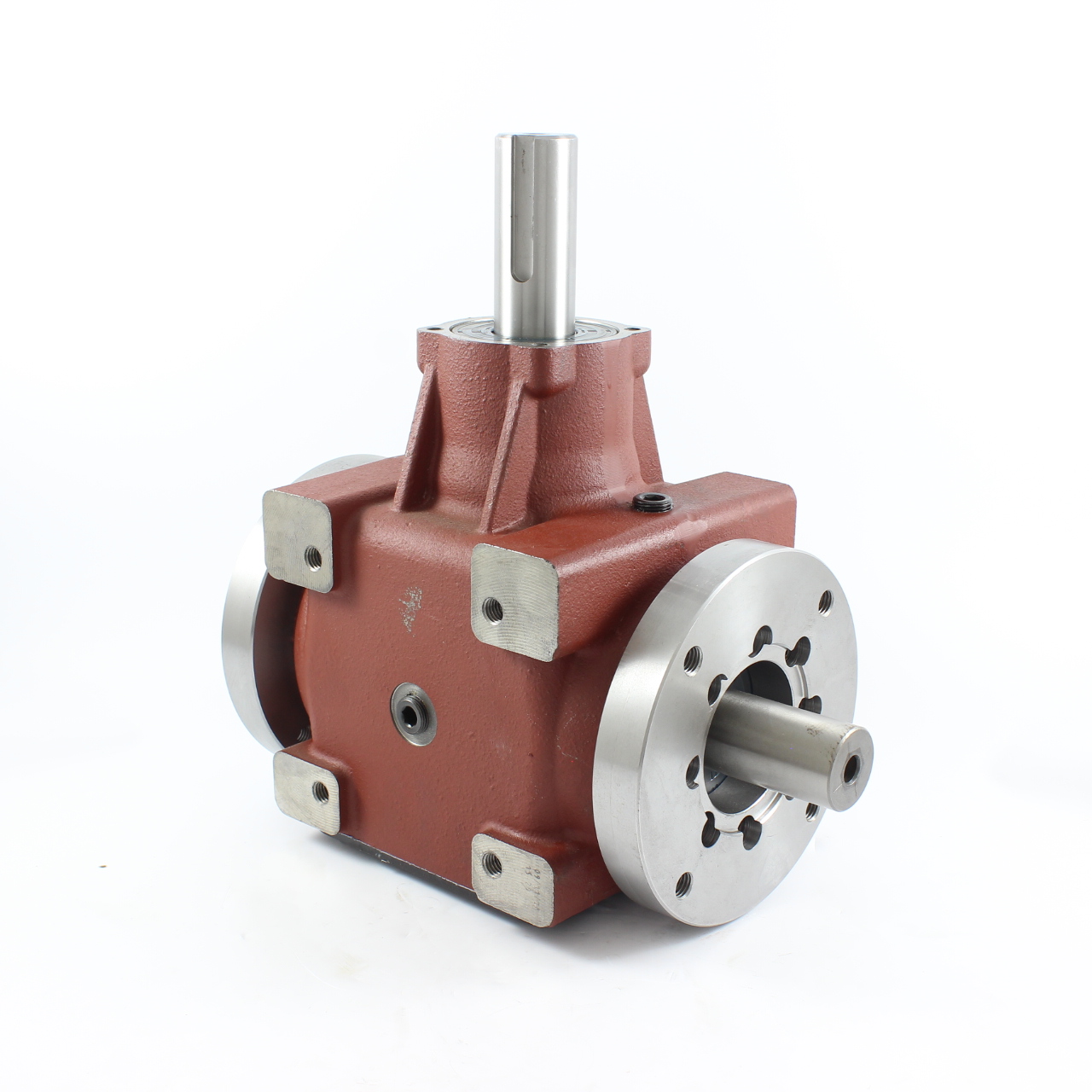

GEARBOX 1.92 M-22.1 R -15.1 TB-27A
GEARBOX 1.92 M-22.1 R -15.1 TB-27A
€ 918,50
DISPONIBILITÀ LIMITATA
Shipment Costs
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: COMER INDUSTRIES S.P.A.
Model: T-27A
Technical features:
Type of application:
Speed increasing unit
Input power rate: 30Cv-22,1Kw (540RPM)
Reduction gear unit
Input power rate: 20,7Cv-15,1Kw (540RPM)
Ratio: 1,92
Outputs: 2
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 24,5
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
Model: T-27A
Technical features:
Type of application:
Speed increasing unit
Input power rate: 30Cv-22,1Kw (540RPM)
Reduction gear unit
Input power rate: 20,7Cv-15,1Kw (540RPM)
Ratio: 1,92
Outputs: 2
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 24,5
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
