PRODUCT details

9.262.013.10

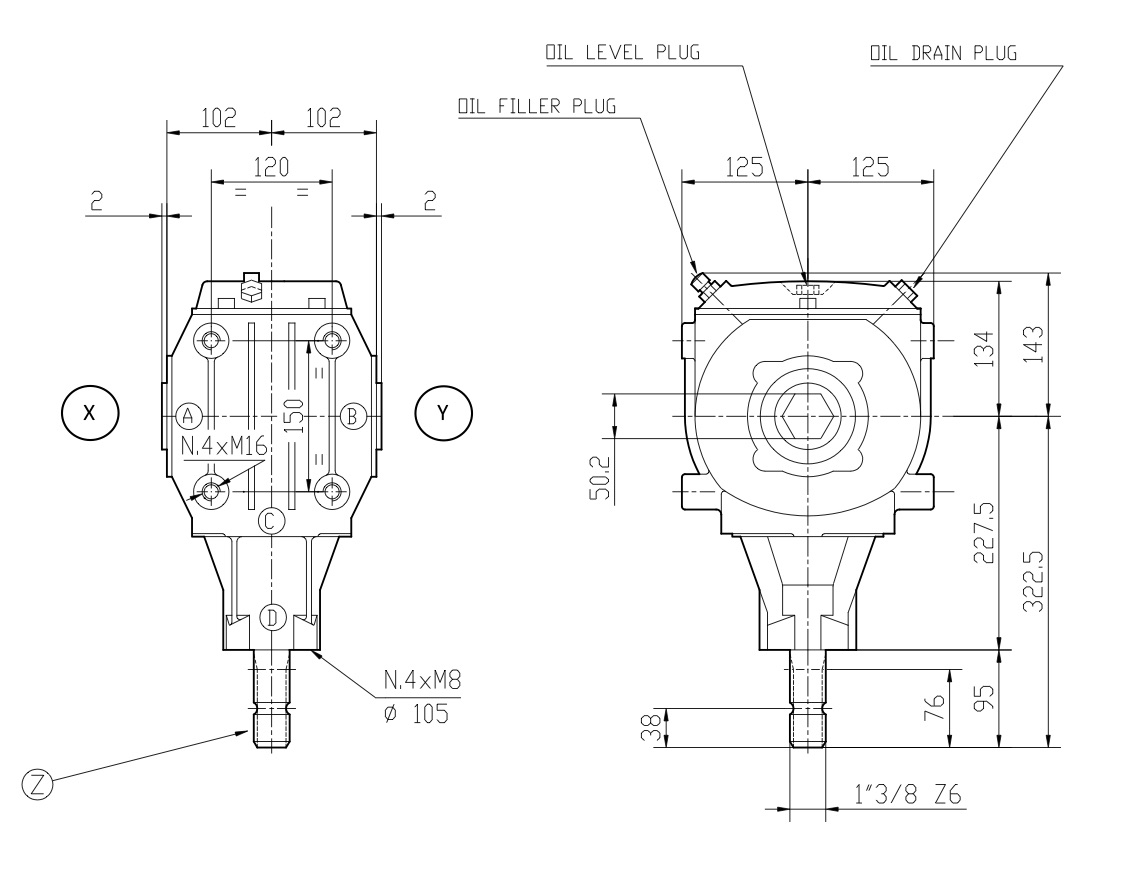

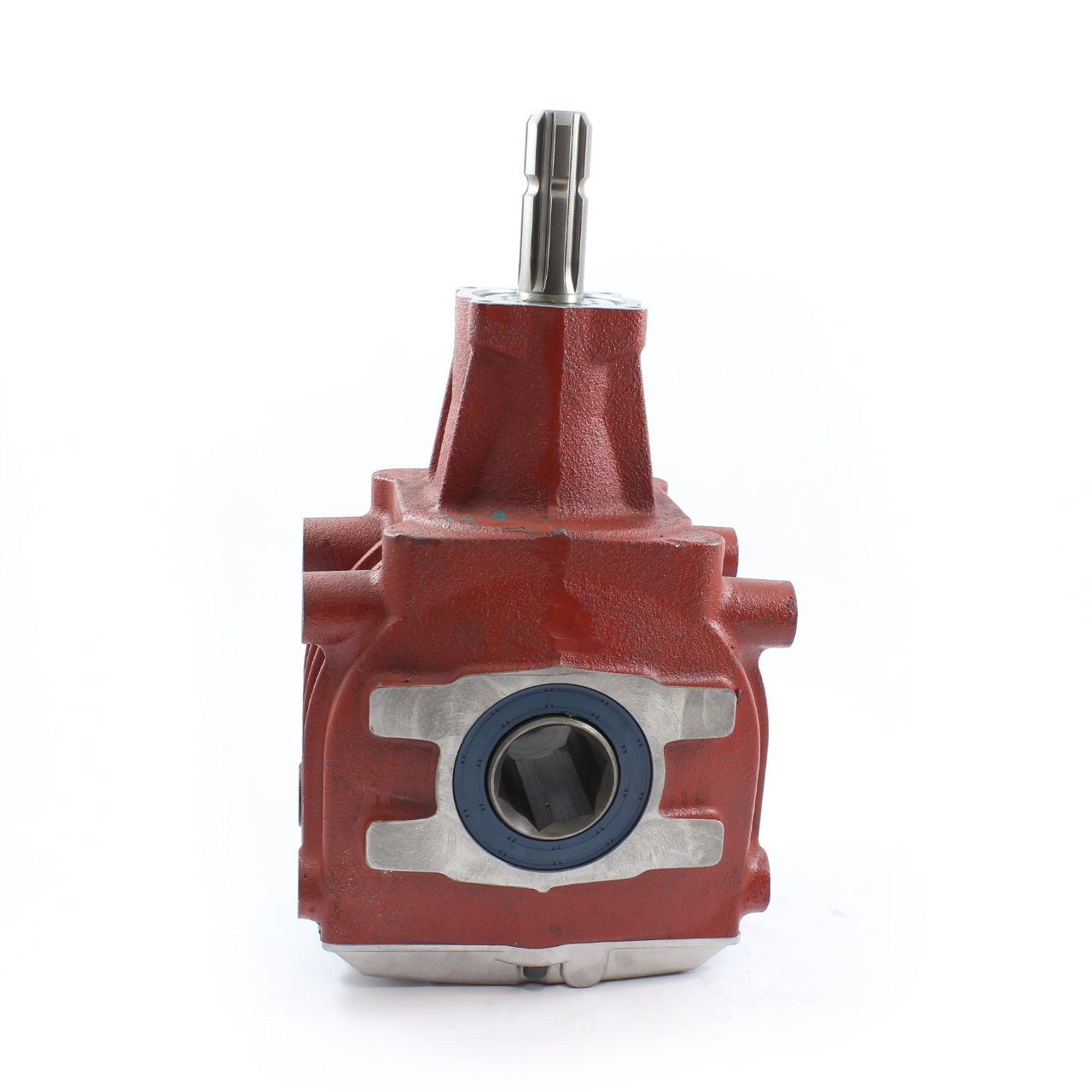

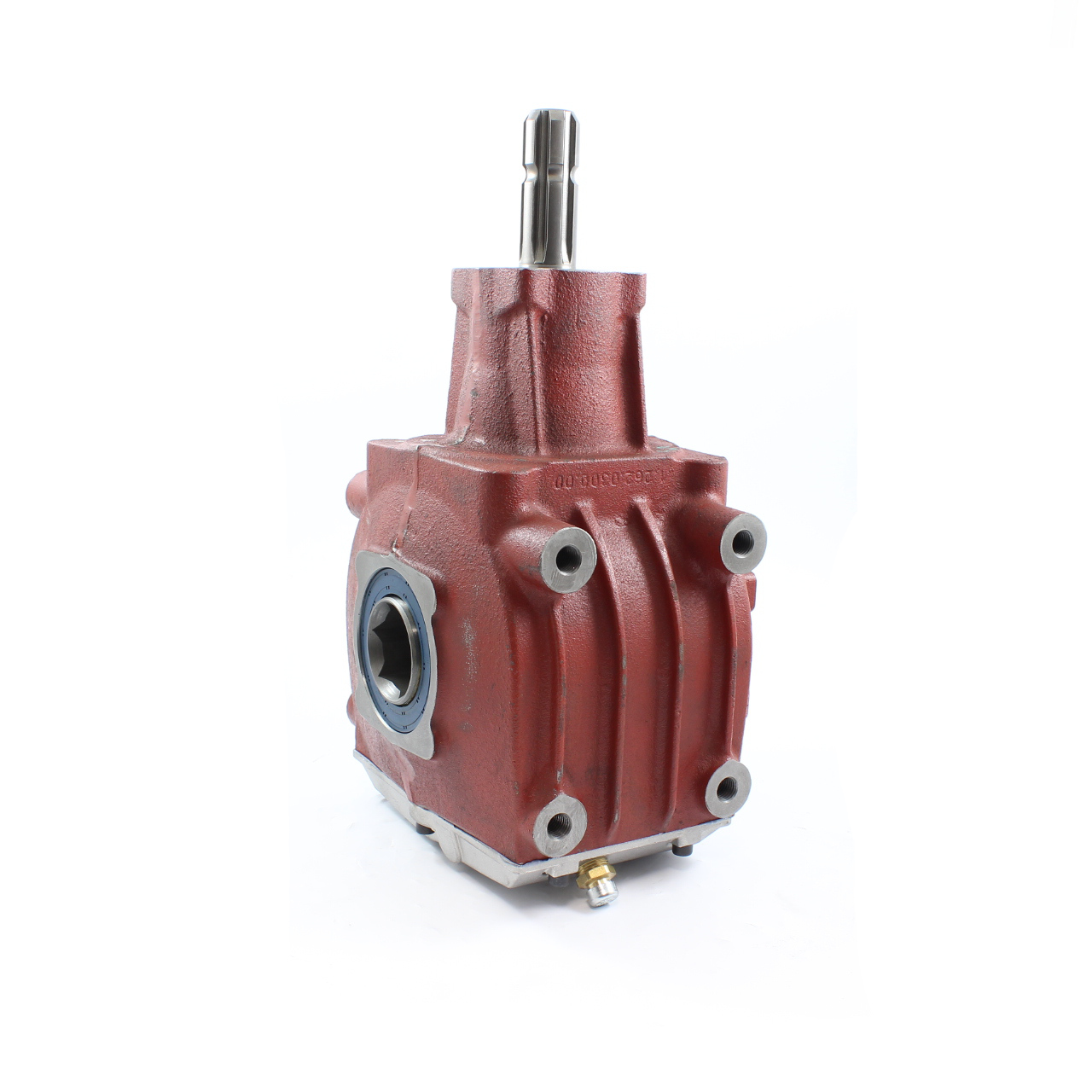

GEARBOX 1.93 M-72.1 R-60.4 TB-22C

€ 1.133,12
LIMITED AVAILABILITY
Shipment Costs
  • Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details

MANUFACTURER: COMER INDUSTRIES S.P.A.

Model: TB-22C

Technical features:

Type of application:

Reduction gear unit
Input power rate: 82Cv-60.4Kw (540RPM)

Speed increasing unit
Input power rate: 98Cv-72.1Kw (540RPM)

Ratio: 1,93

Outputs: 2

Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component


Shafts Rotation: Download data sheet to check the possible available rotation.

Material: Cast iron

Dry weight: Kg 31,5

Supplied without lubricant

• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)

List of combined products
Availability
AVAILABLE
0.132.7106.00

NUT M30X1.5

€ 15,74
Availability
LIMITED AVAILABILITY
0.262.2002.00

SHAFT 1"3/8 Z6

€ 144,04
Availability
LIMITED AVAILABILITY
0.262.3001.00

SLEEVE HEX Ø50

€ 403,01
Availability
LIMITED AVAILABILITY
0.262.5000.00

PINION Z15 M6,9

€ 141,69
Availability
AVAILABLE
8.4.7.01111

COPIGLIA B4X55 UNI1336

€ 3,00
Availability
AVAILABLE
8.7.1.00315

DOUBLE LIP SEAL 35x80x10

€ 7,88
