PRODUCT details
9.603.011.00

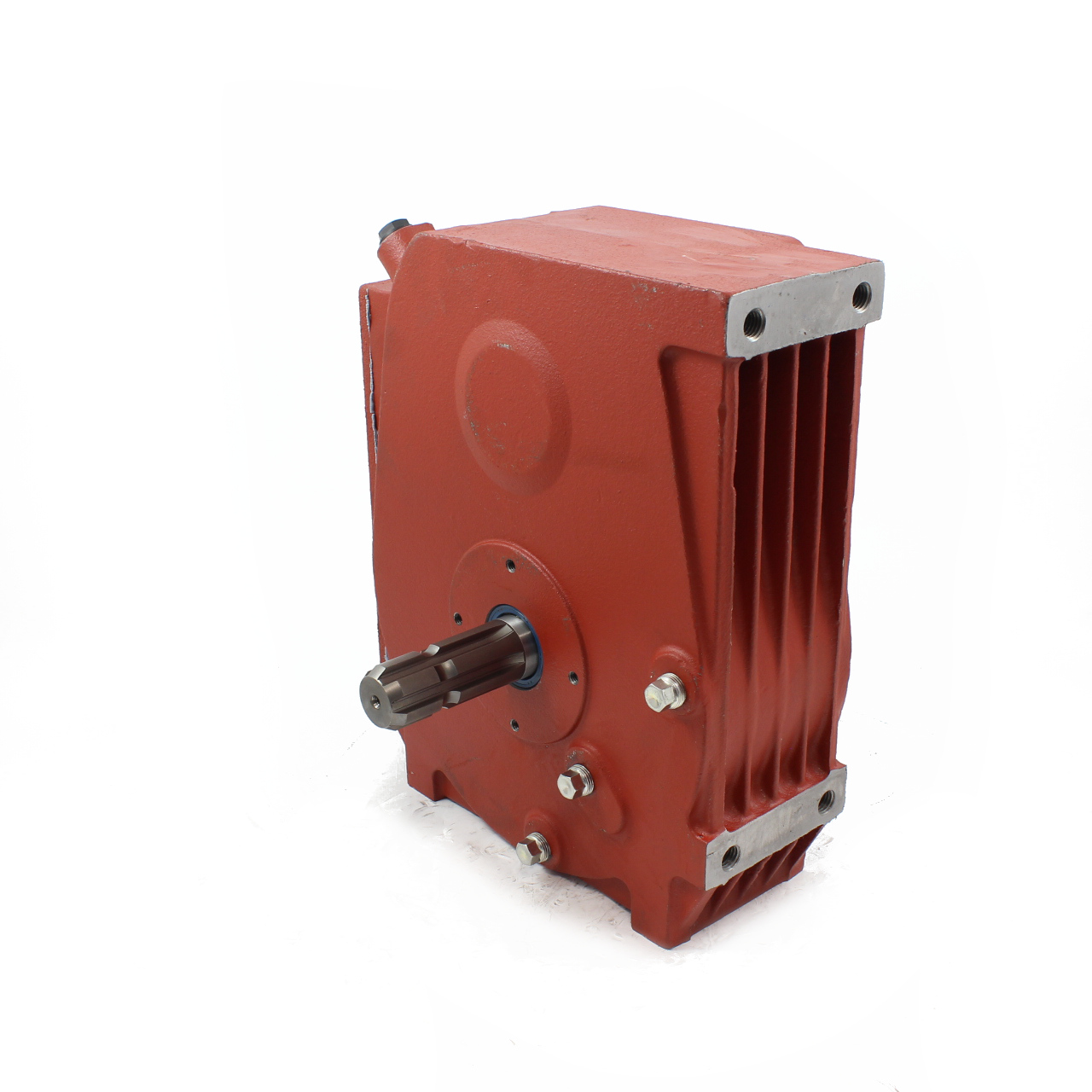

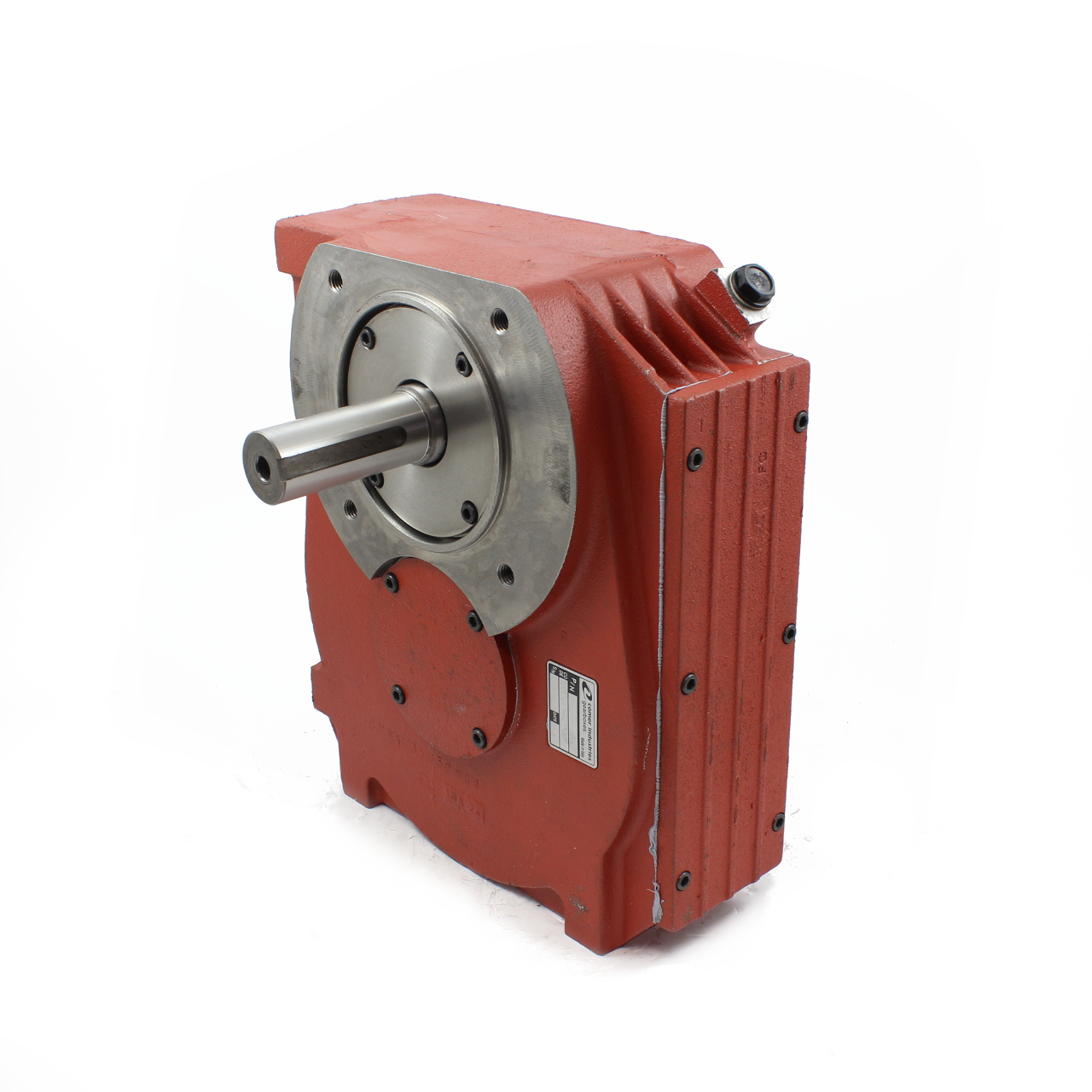

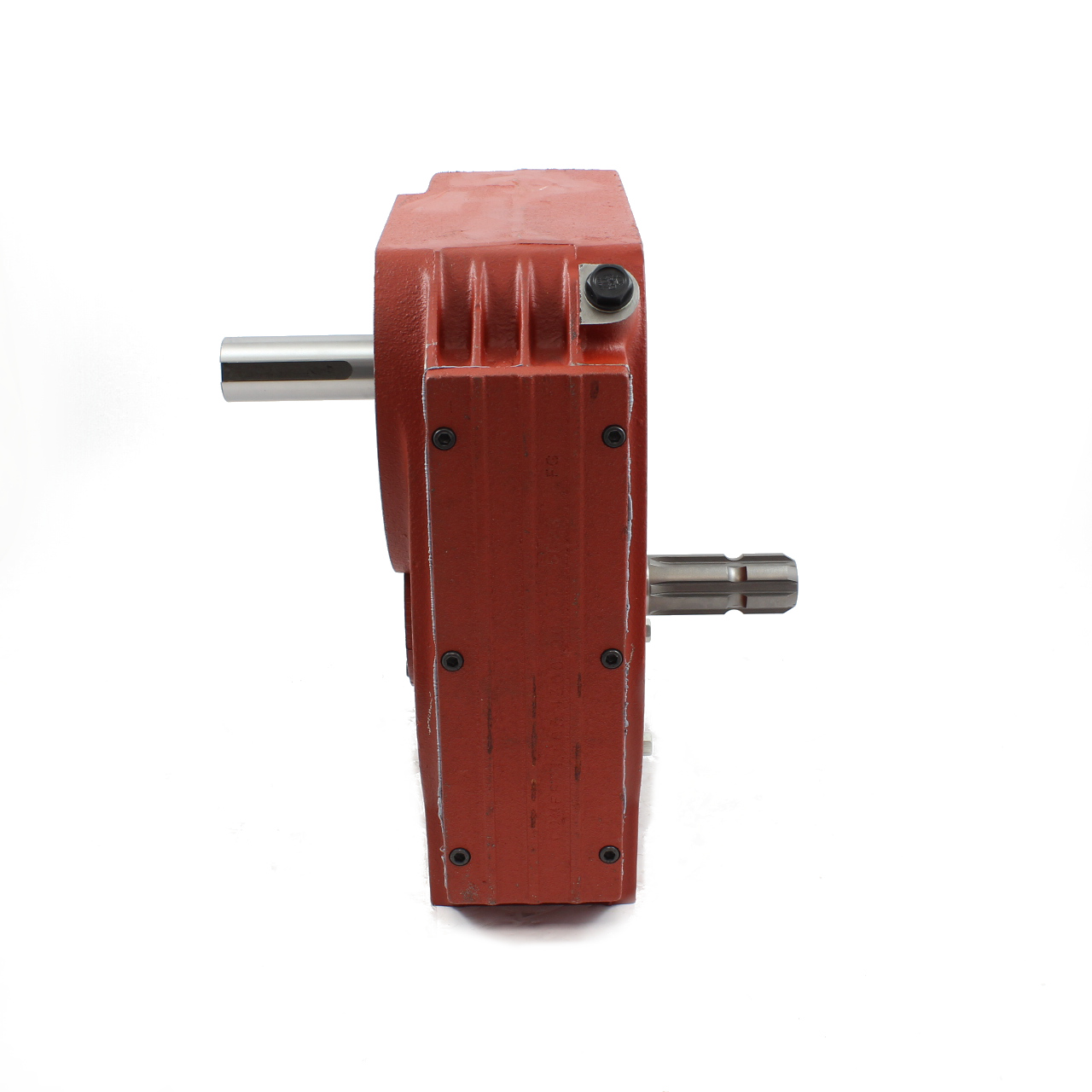

GEARBOX 3 M-59.6 R-21 A-4A
GEARBOX 3 M-59.6 R-21 A-4A
VAT Tax Excluded
€ 890,87
LIMITED AVAILABILITY
Shipment Costs
Shipping Calculation
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: COMER INDUSTRIES S.P.A.
Model: A-4A
Technical features:
Reduction gear unit
Input power rate: 28,5Cv-21Kw (540RPM)
Speed increasing unit
Input power rate: 81Cv-59.6Kw (540RPM)
Ratio: 3
Outputs: 1
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Special features: Helicoidal teeth inside
Dry weight: Kg 39,4
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
Model: A-4A
Technical features:
Reduction gear unit
Input power rate: 28,5Cv-21Kw (540RPM)
Speed increasing unit
Input power rate: 81Cv-59.6Kw (540RPM)
Ratio: 3
Outputs: 1
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Special features: Helicoidal teeth inside
Dry weight: Kg 39,4
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
List of combined products
LIMITED AVAILABILITY
0.603.2000.02
SHAFT
SHAFT
€ 202,99
LIMITED AVAILABILITY
8.0.1.00049
BALL BEARING 6307
BALL BEARING 6307
€ 10,96
