PRODUCT details
9.649.014.20

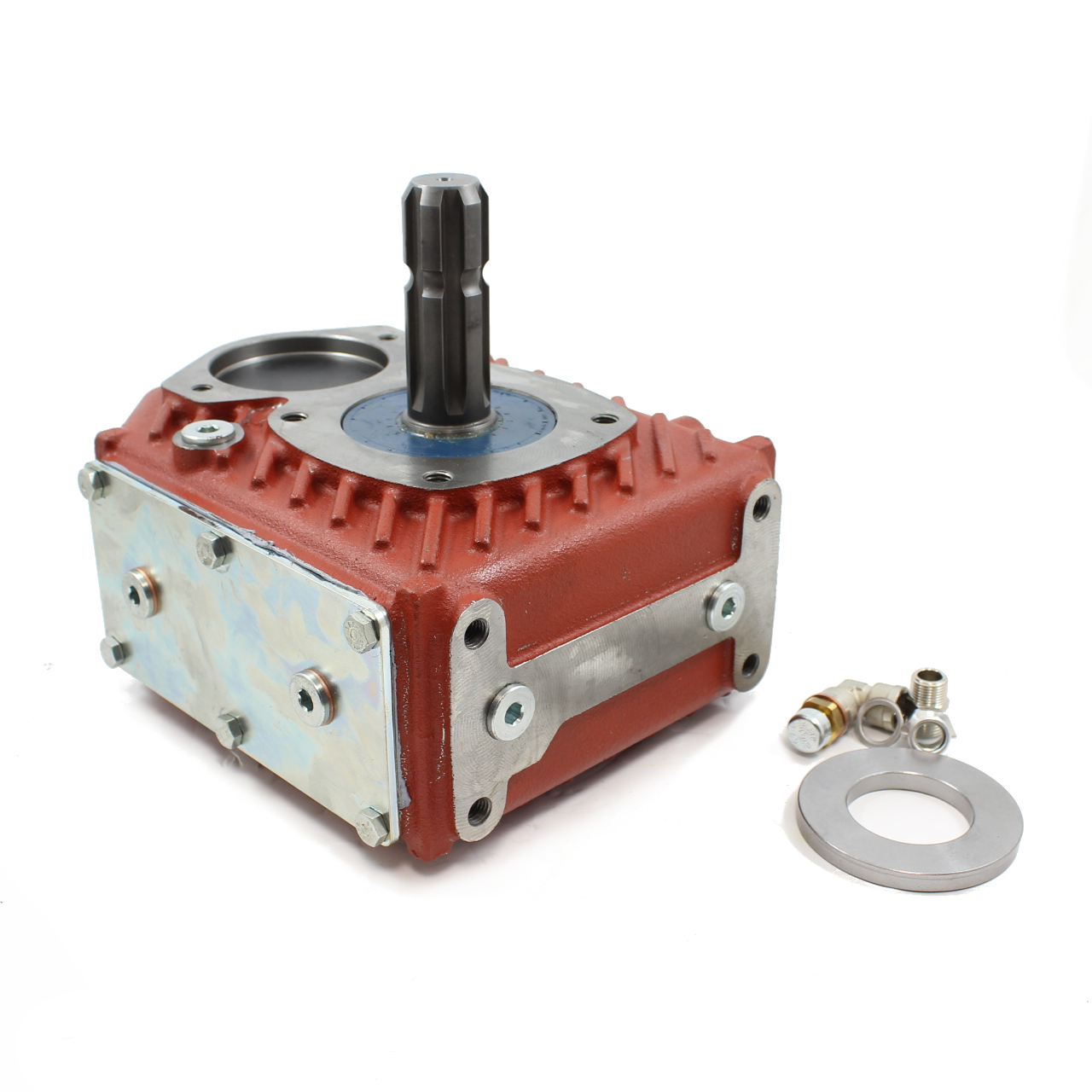

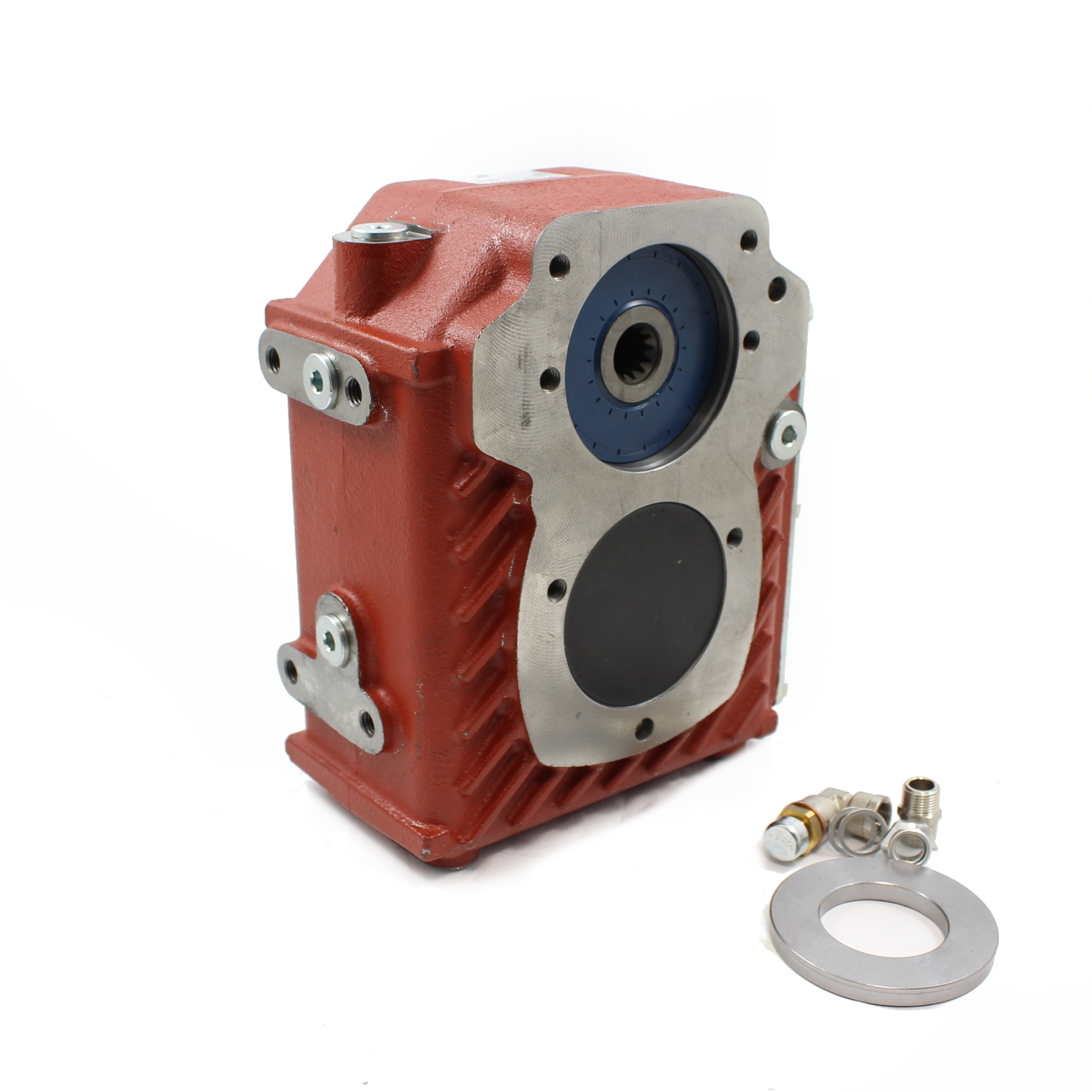

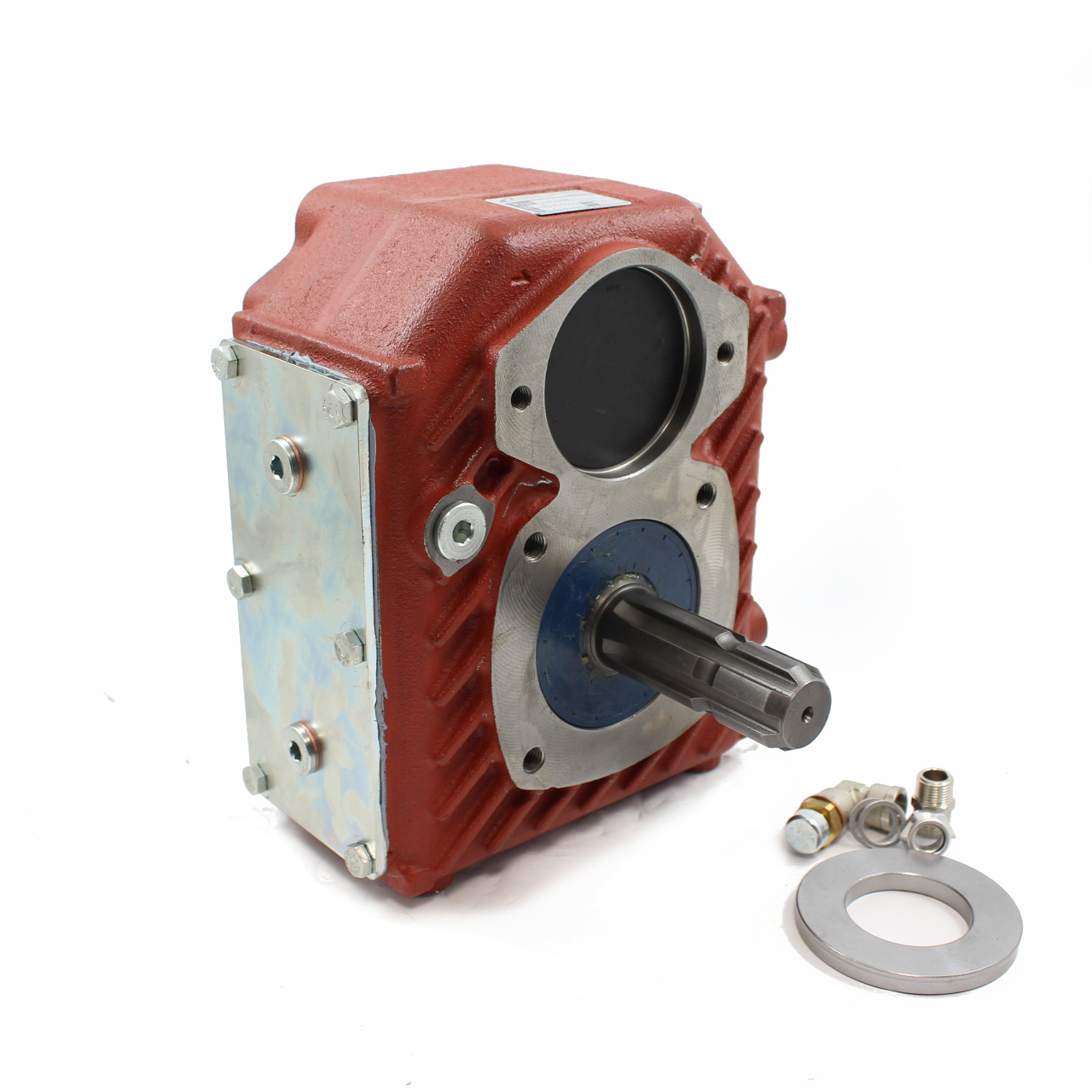

GEARBOX 4,23 M-40,4 A-649A
GEARBOX 4,23 M-40,4 A-649A
VAT Tax Excluded
€ 695,84
LIMITED AVAILABILITY
Shipment Costs
Shipping Calculation
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: COMER INDUSTRIES S.P.A.
Model: A-649A
Technical features:
Type of application: Speed increasing unit
Input power rate: 55 Cv-40,4 Kw (540RPM)
Input power rate: 76Cv-55,8 Kw (1000RPM)
Ratio: 4,23
Outputs: 1
- SAE A 2 Holes
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 25,5
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
Model: A-649A
Technical features:
Type of application: Speed increasing unit
Input power rate: 55 Cv-40,4 Kw (540RPM)
Input power rate: 76Cv-55,8 Kw (1000RPM)
Ratio: 4,23
Outputs: 1
- SAE A 2 Holes
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 25,5
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
