PRODUCT details
9.304.760.10

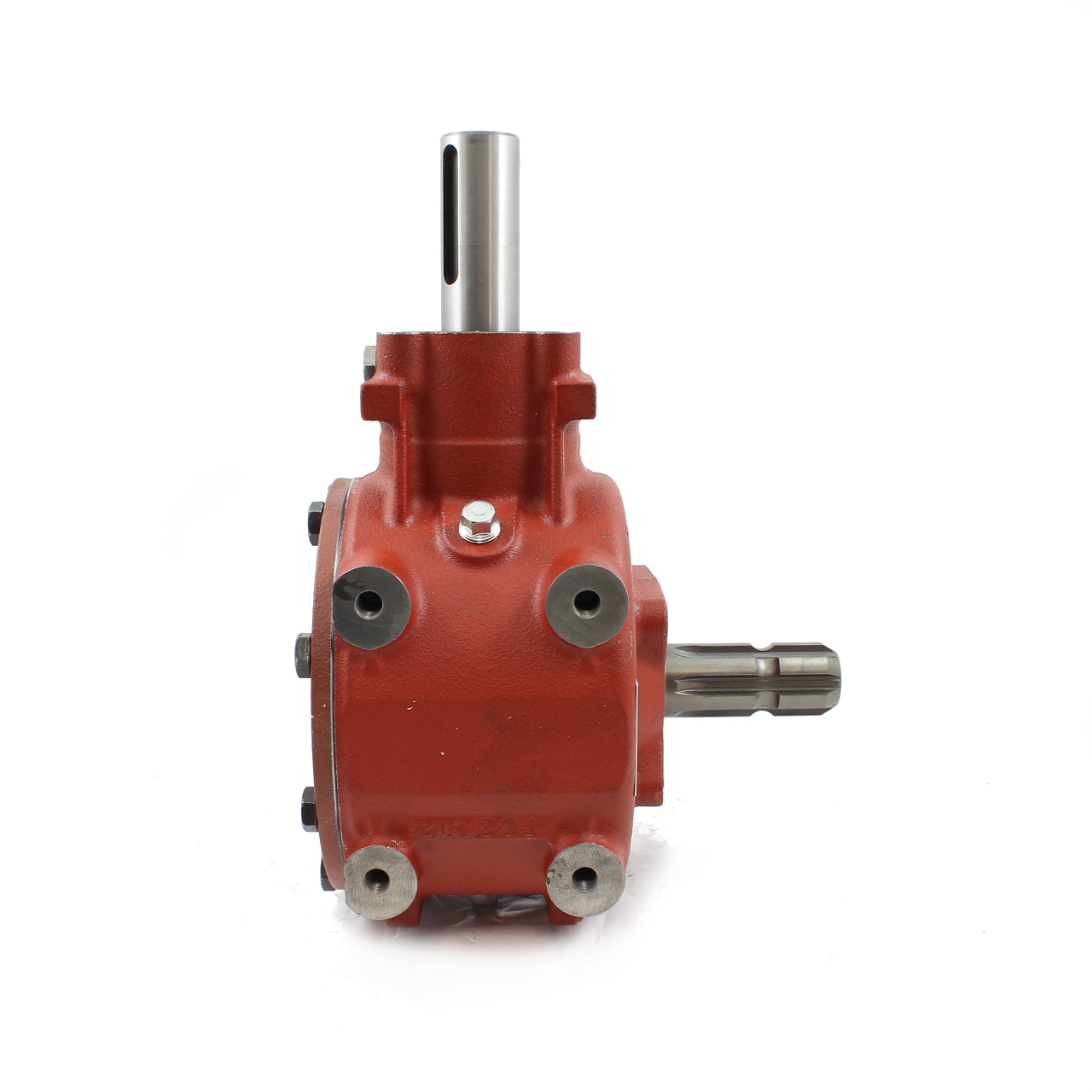

GEARBOX 4.5 M-28 R-11 T-304A
GEARBOX 4.5 M-28 R-11 T-304A
VAT Tax Excluded
€ 690,00
LIMITED AVAILABILITY
Shipment Costs
Shipping Calculation
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: COMER INDUSTRIES S.P.A.
Model: T-304A
Technical features:
Type of application:
Reduction gear unit
Input power rate: 15Cv-11.3Kw (540RPM)
Speed increasing unit
Input power rate: 38Cv-28Kw (540RPM)
Ratio: 4,5
Outputs: 1
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 18.5
Special features: Helicoidal bevel gears inside / Oil Seals material Viton
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
Model: T-304A
Technical features:
Type of application:
Reduction gear unit
Input power rate: 15Cv-11.3Kw (540RPM)
Speed increasing unit
Input power rate: 38Cv-28Kw (540RPM)
Ratio: 4,5
Outputs: 1
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 18.5
Special features: Helicoidal bevel gears inside / Oil Seals material Viton
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
