PRODUCT details
9.624.012.00

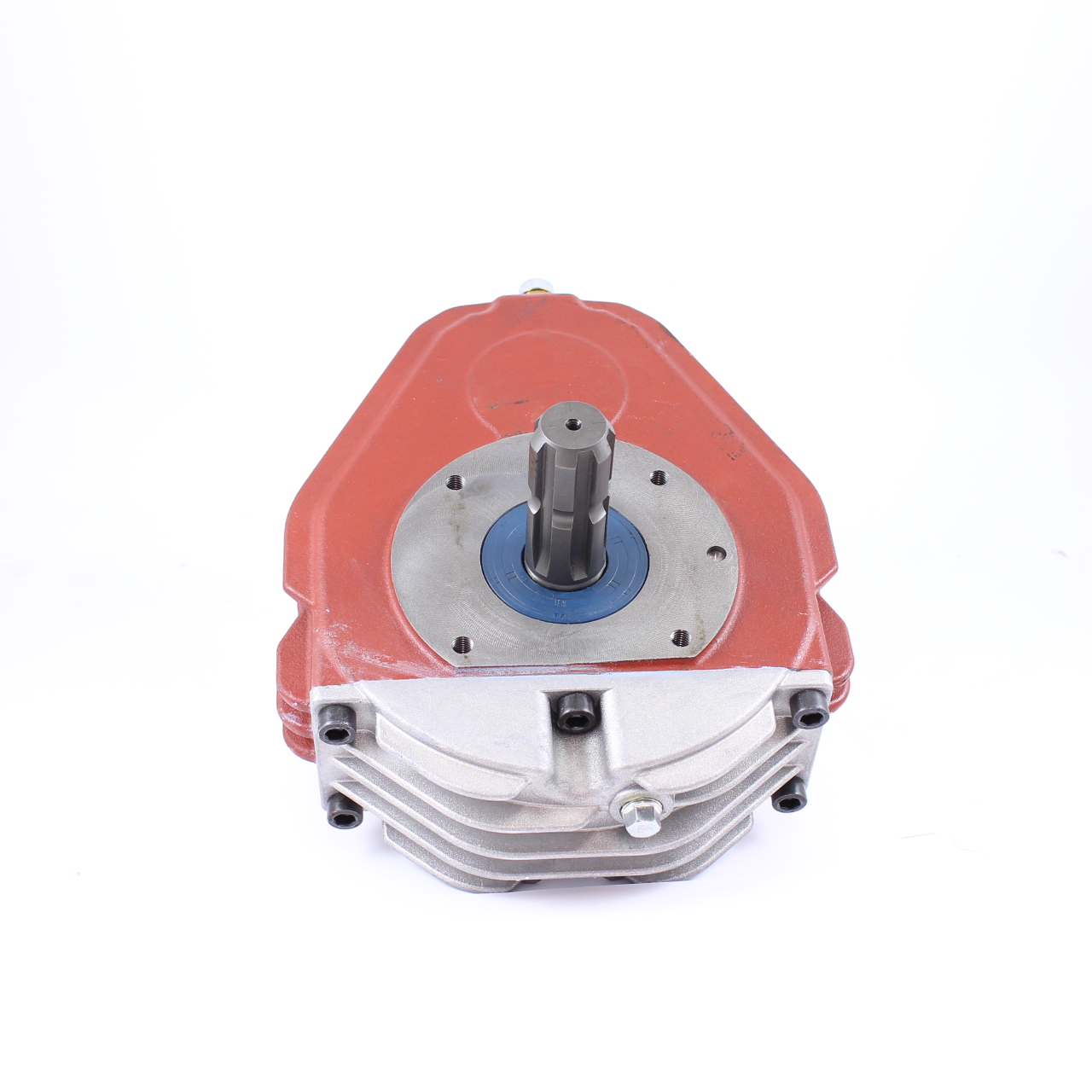

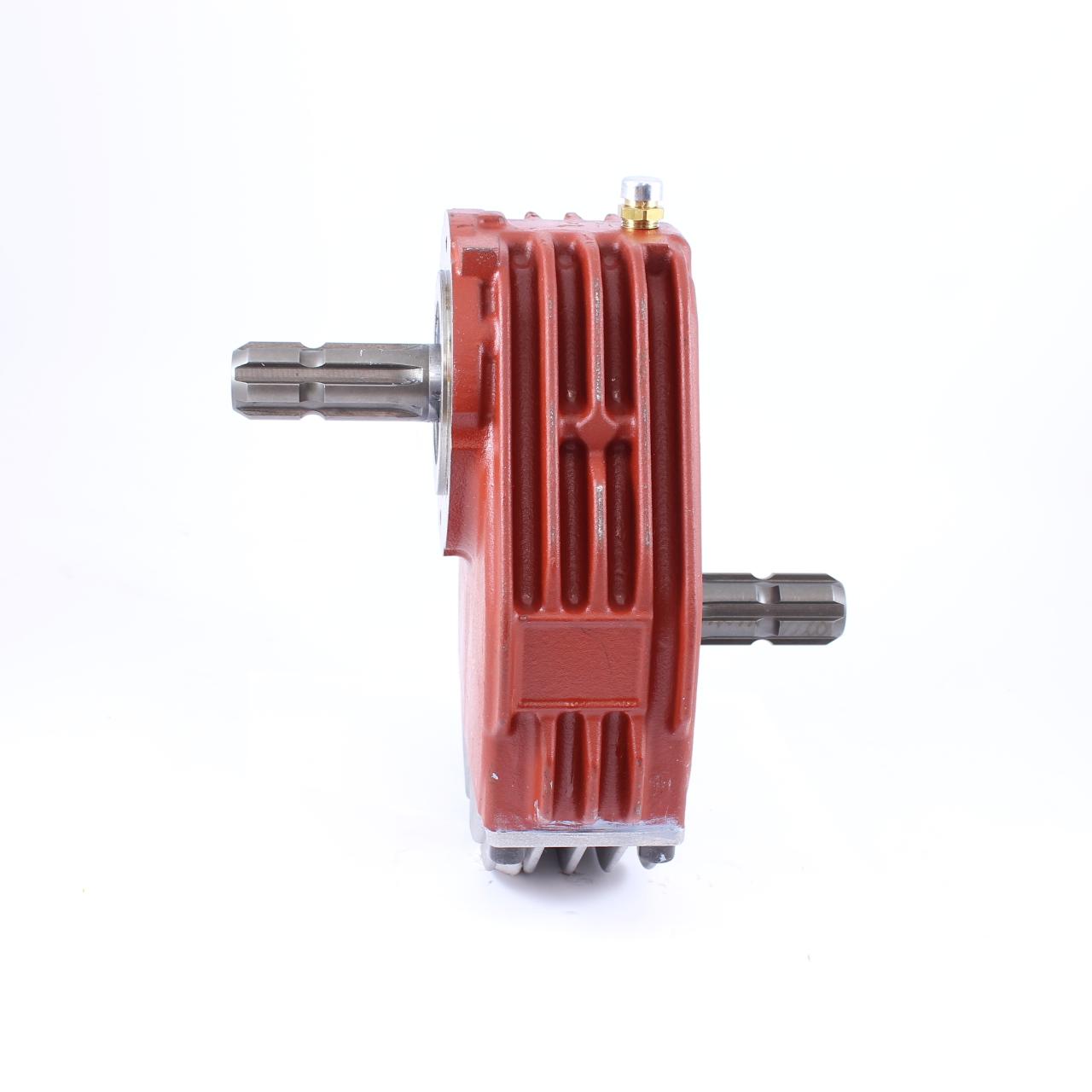

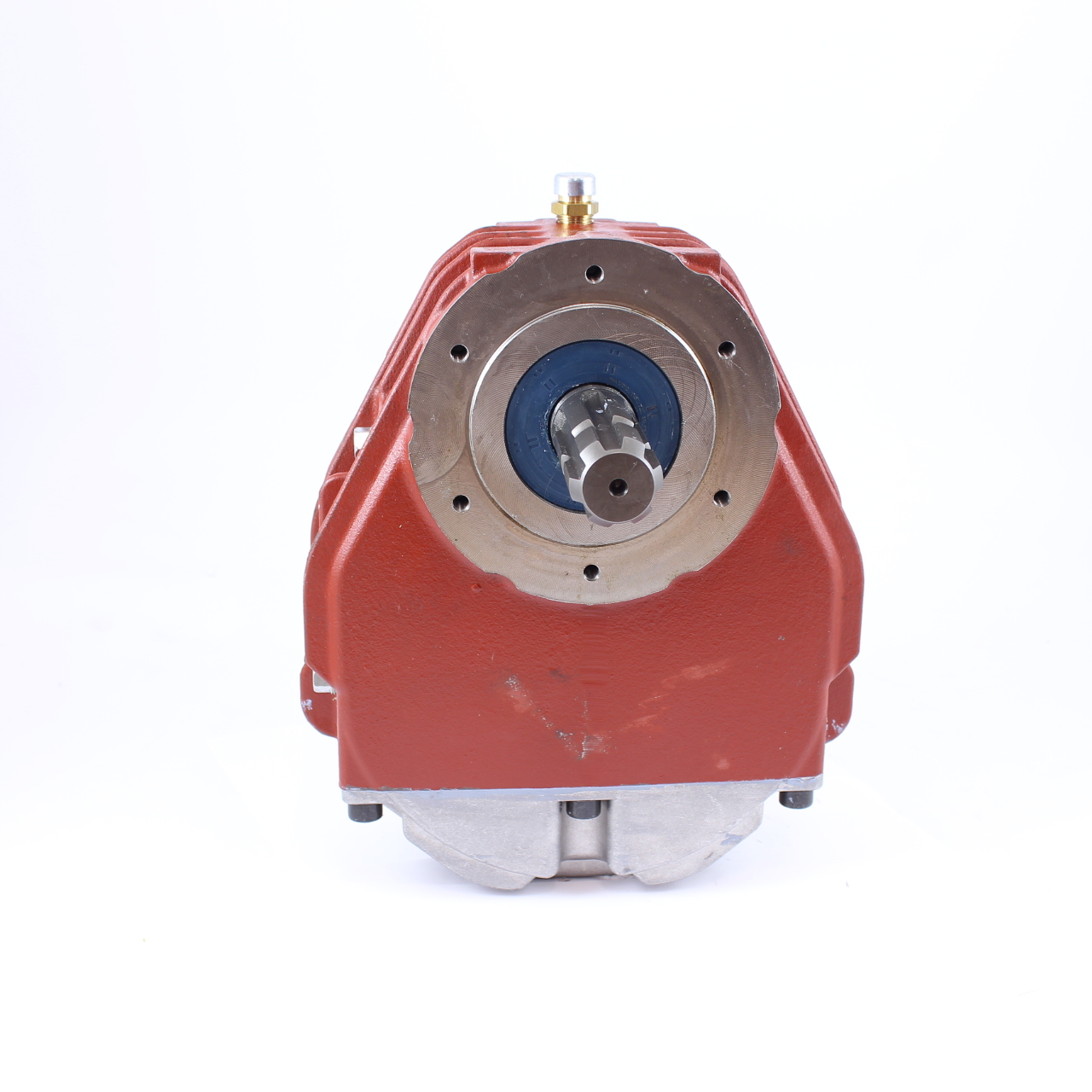

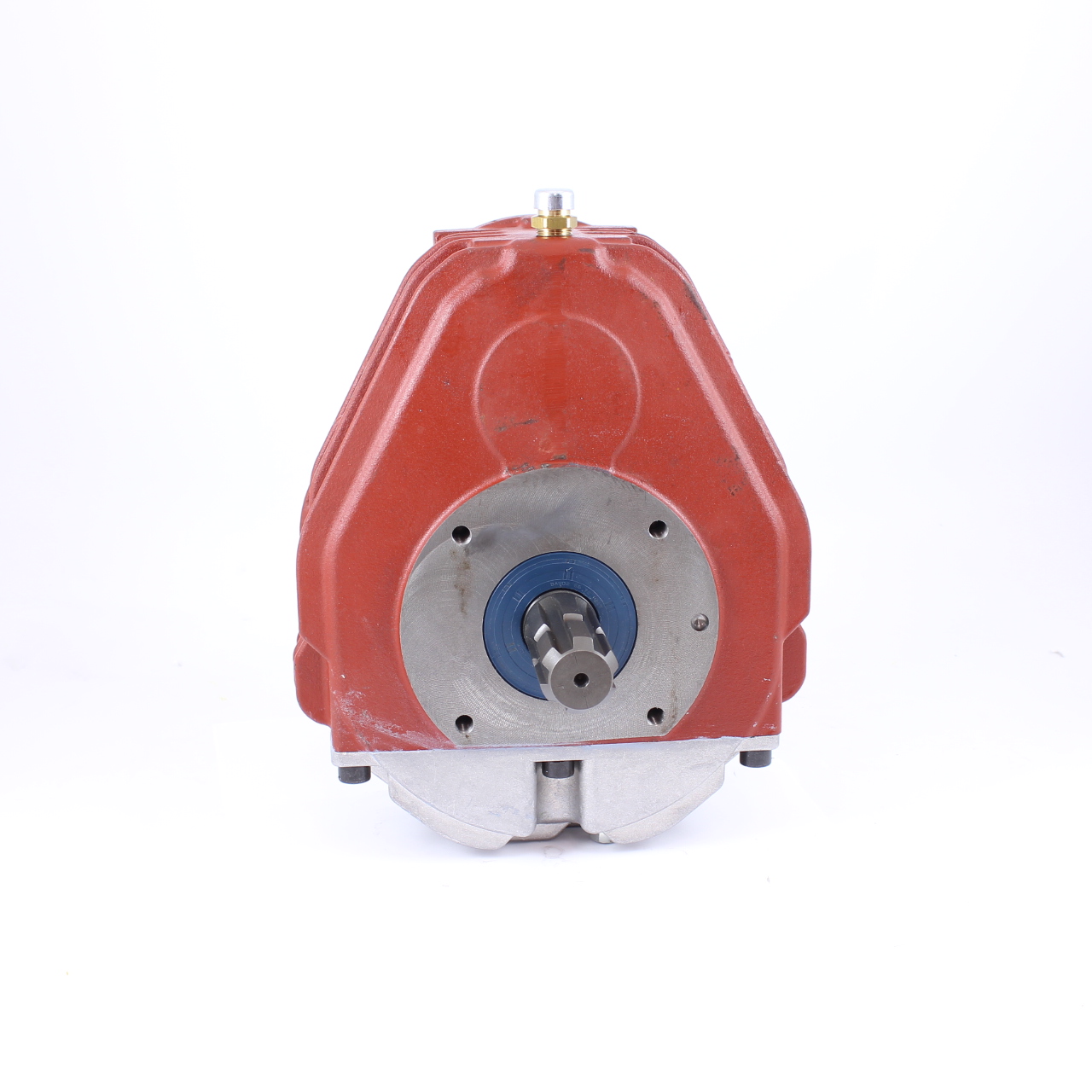

GEARBOX 6.9 M-25.8 R- 7.4 A-624A
GEARBOX 6.9 M-25.8 R- 7.4 A-624A
€ 622,19
AVAILABLE
Shipment Costs
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: COMER INDUSTRIES S.P.A.
Model: A-624A
Technical features:
Type of application:
Reduction gear unit
Input power rate: 10Cv-7.4Kw (540RPM)
Speed increasing unit
Input power rate: 37Cv-25.8Kw (540RPM)
Ratio: 6,9
Outputs: 1
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component

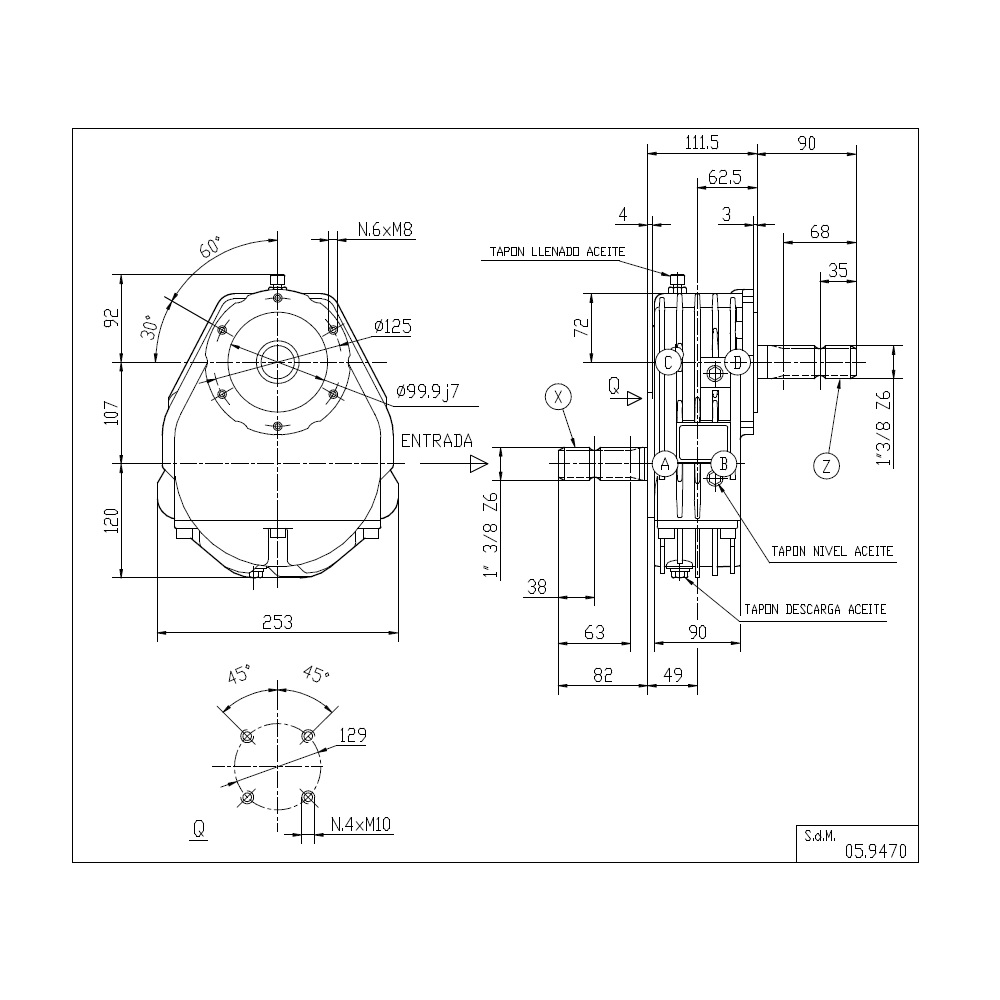

Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 17
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
