PRODUCT details
9.600.302.30

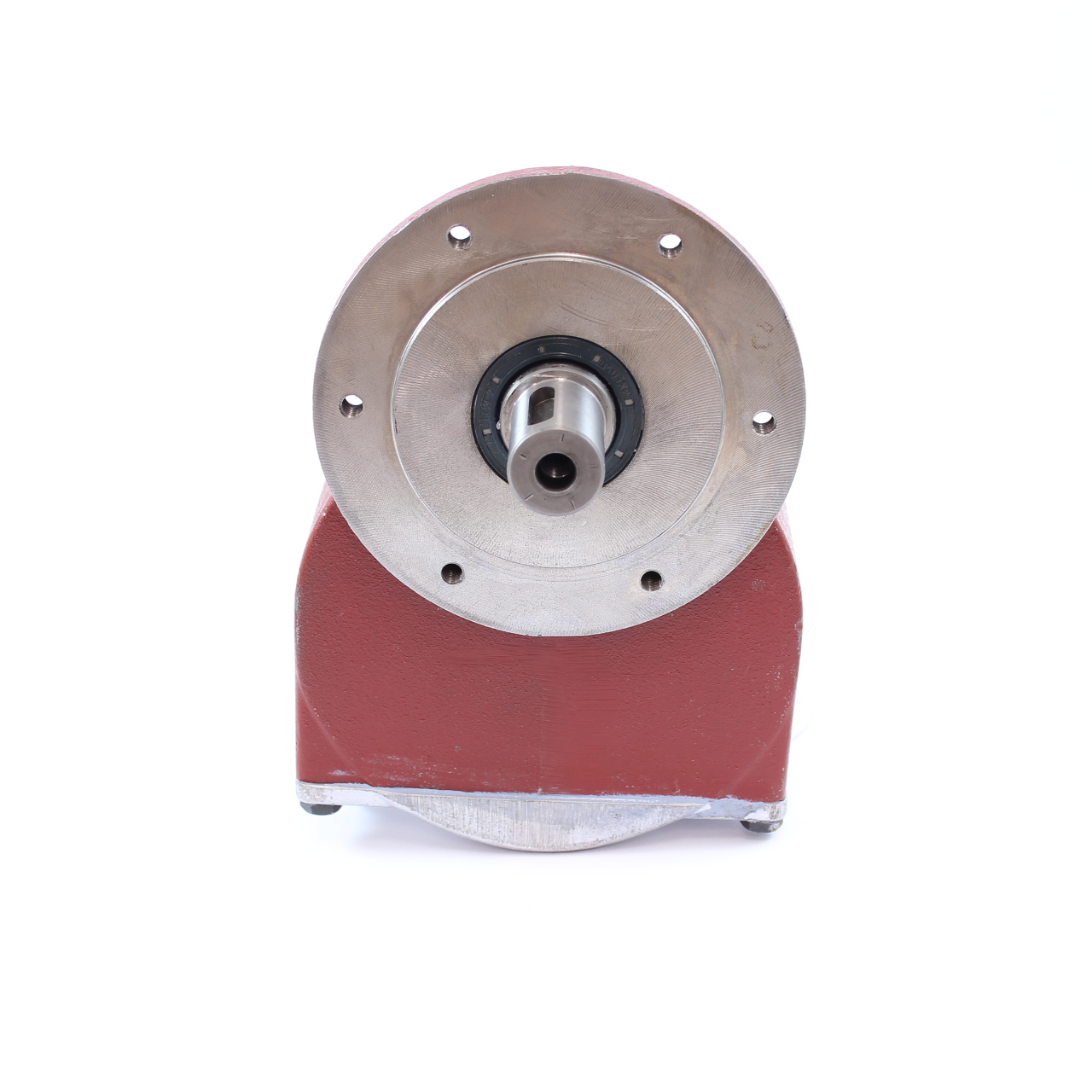

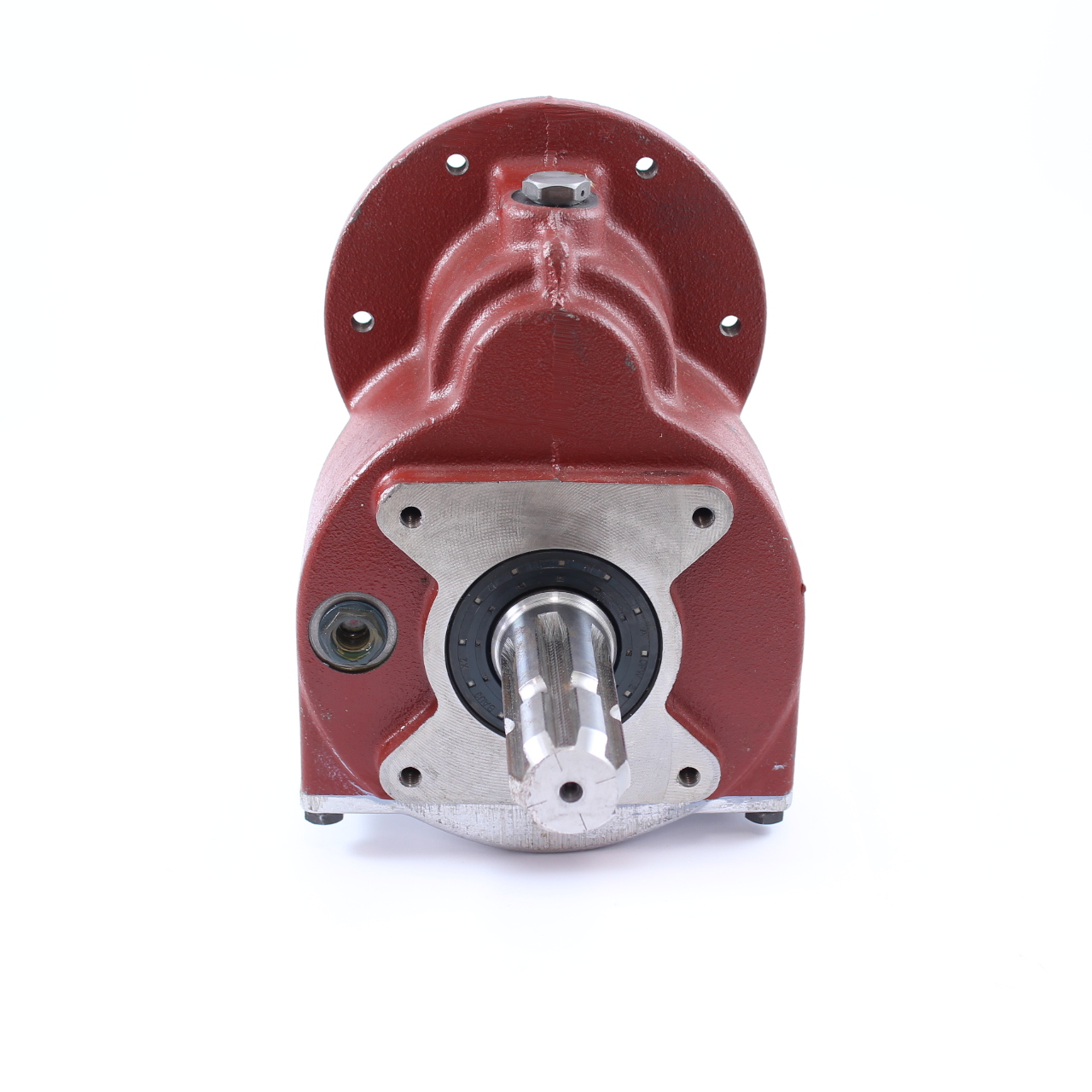

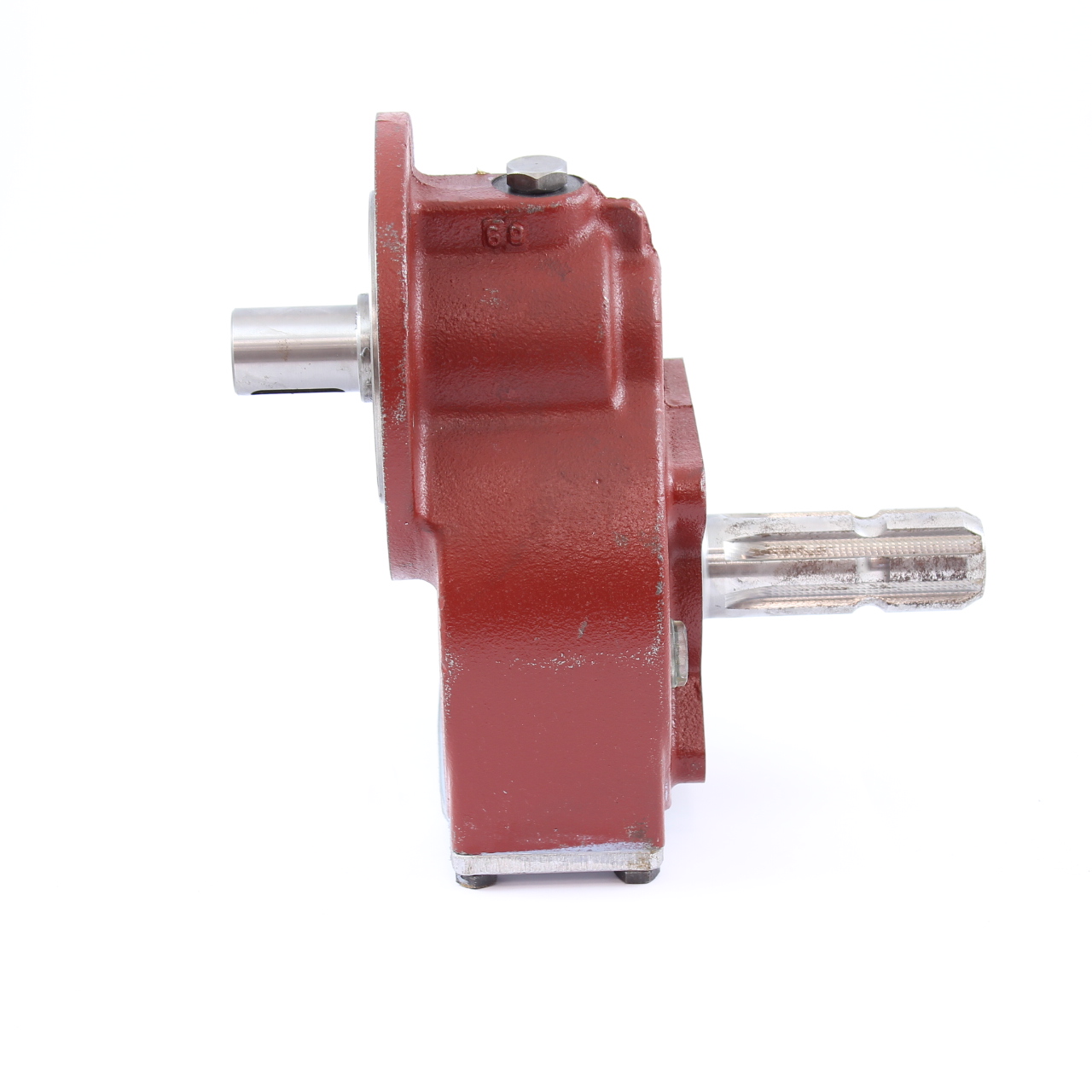

GEARBOX 7.8 M-11.8 R- 3.7 A-1A
GEARBOX 7.8 M-11.8 R- 3.7 A-1A
€ 715,73
LIMITED AVAILABILITY
Shipment Costs
-
Trasporto a mezzo corriere Bartolini BRT 0,00 €
Product details
MANUFACTURER: COMER INDUSTRIES S.P.A.
Model: A-1A
Technical features:
Type of application:
Reduction gear unit
Input power rate: 5Cv-3.7Kw (540RPM)
Speed increasing unit
Input power rate: 16Cv-11.8Kw (540RPM)
Ratio: 7,8
Outputs: 1
Rotation
The rotation is defined as either clocwise or counter-clockwise by looking "into" the components in motion ( shaft, pulley, or sprocket), with the gearbox behind the component
Shafts Rotation: Download data sheet to check the possible available rotation.
Material: Cast iron
Dry weight: Kg 11
Supplied without lubricant
• Different shafts rotation available (please ask our TECHNICAL DEPARTMENT)
