PRODUCT details

MANUFACTURER: Comer Industries S.p.A.

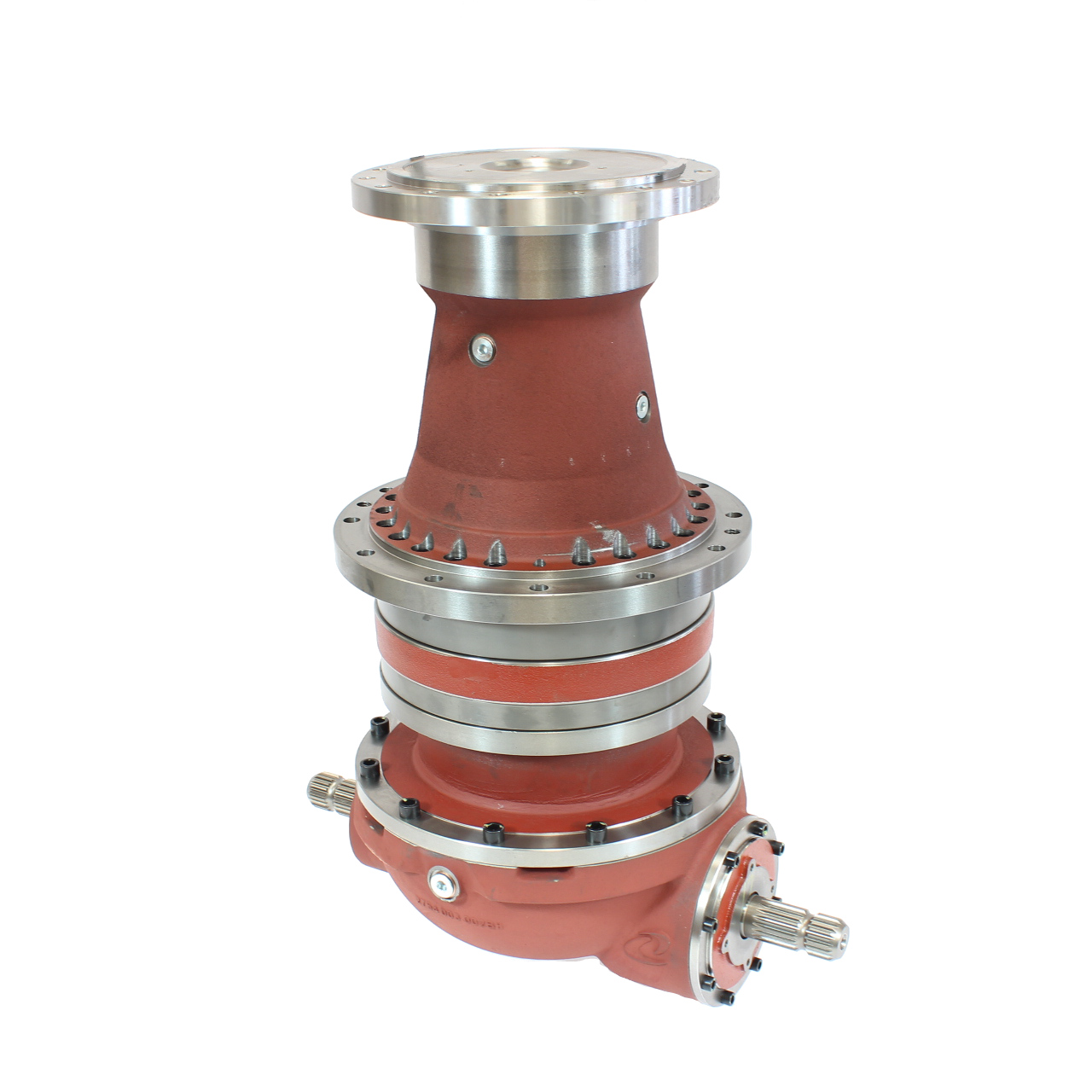

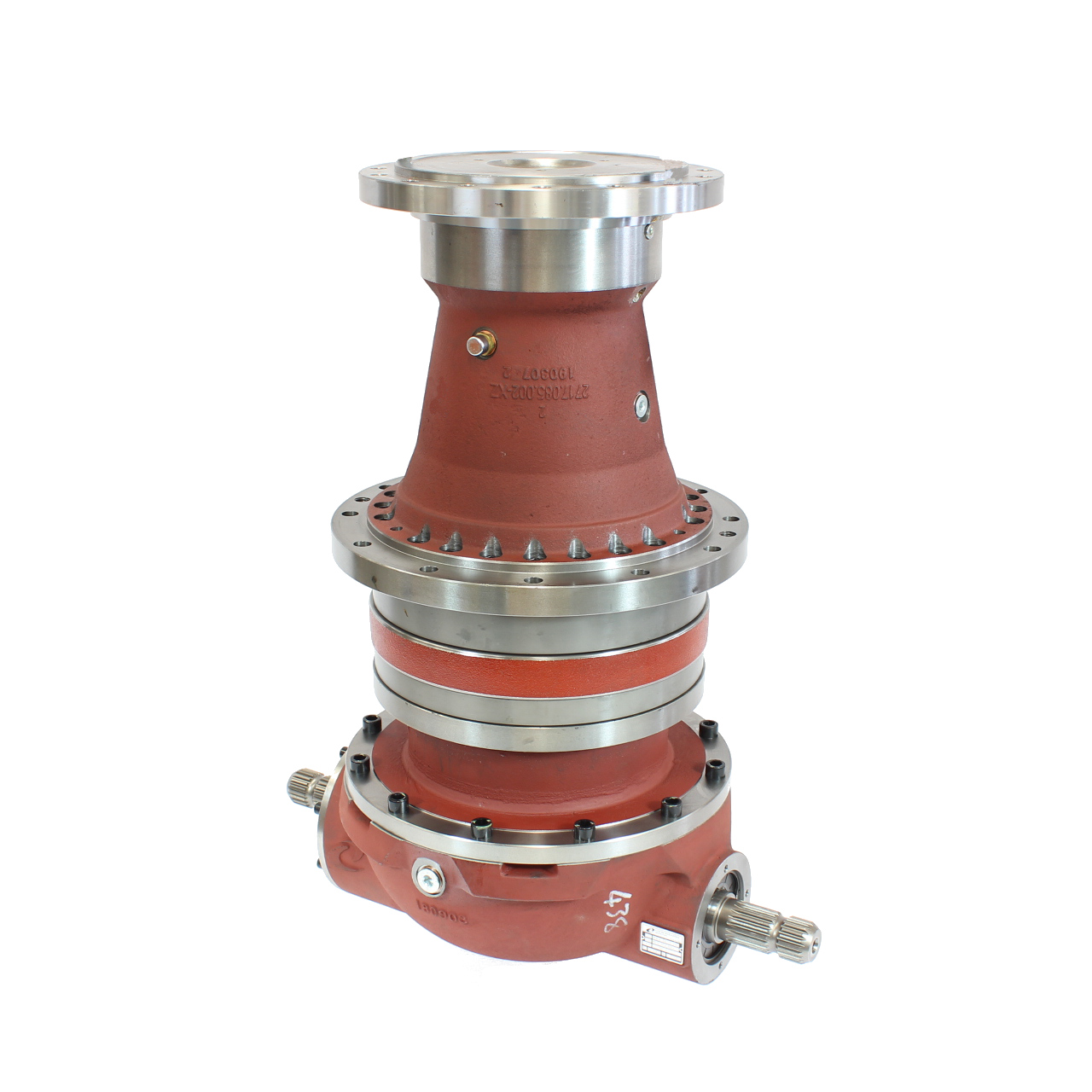

Model: PGA 1603 VM 4s 25.9 E.1"3/4 Z20 U.1"3/4 Z20 V37

Technical features:

Planetary Gearbox with through shaft bevel gear

Typical Application :
Trailed Vertical Feed Mixers with Single or Double vertical auger, Biogas Stationary Machines

Ratio: 1/25.9

Continuous Admissible Torque: 19500/21500 Nm
Maximum torque (brief time or start-up peaks): 39000 Nm

Bevel gear With Input Through Shaft
RPM Input: 1000/540 rpm
Output RPM: 34.5/20.85 rpm

Supplied without lubricant

Indicatively the capacity of the machines:
Single Vertical Auger Machine Capacity: 10/12/14 cubic meters
Double Vertical Auger Machine Capacity: 18/20/24 cubic meters
