PRODUCT details

Manufacturer : Comer Industries S.p.A.

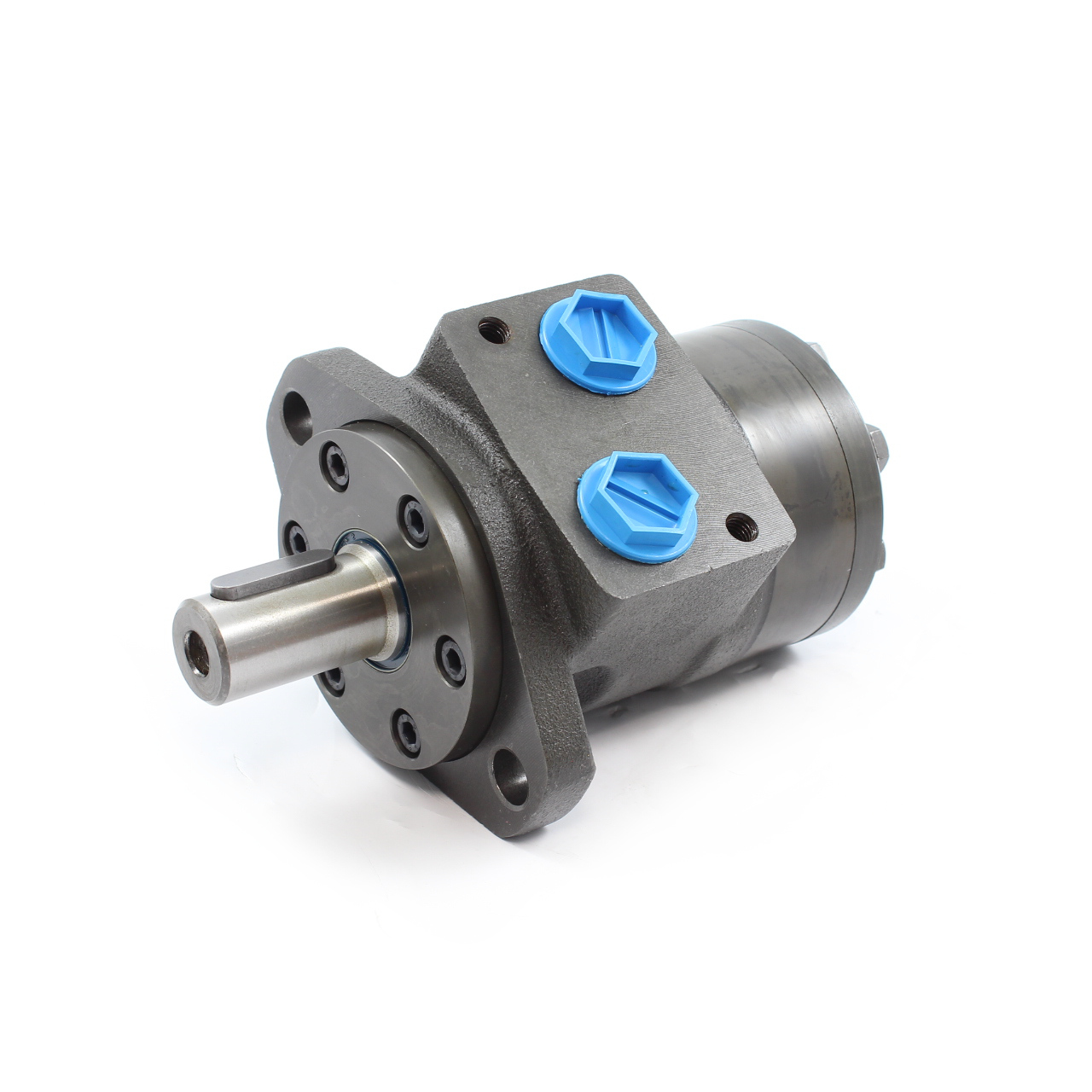

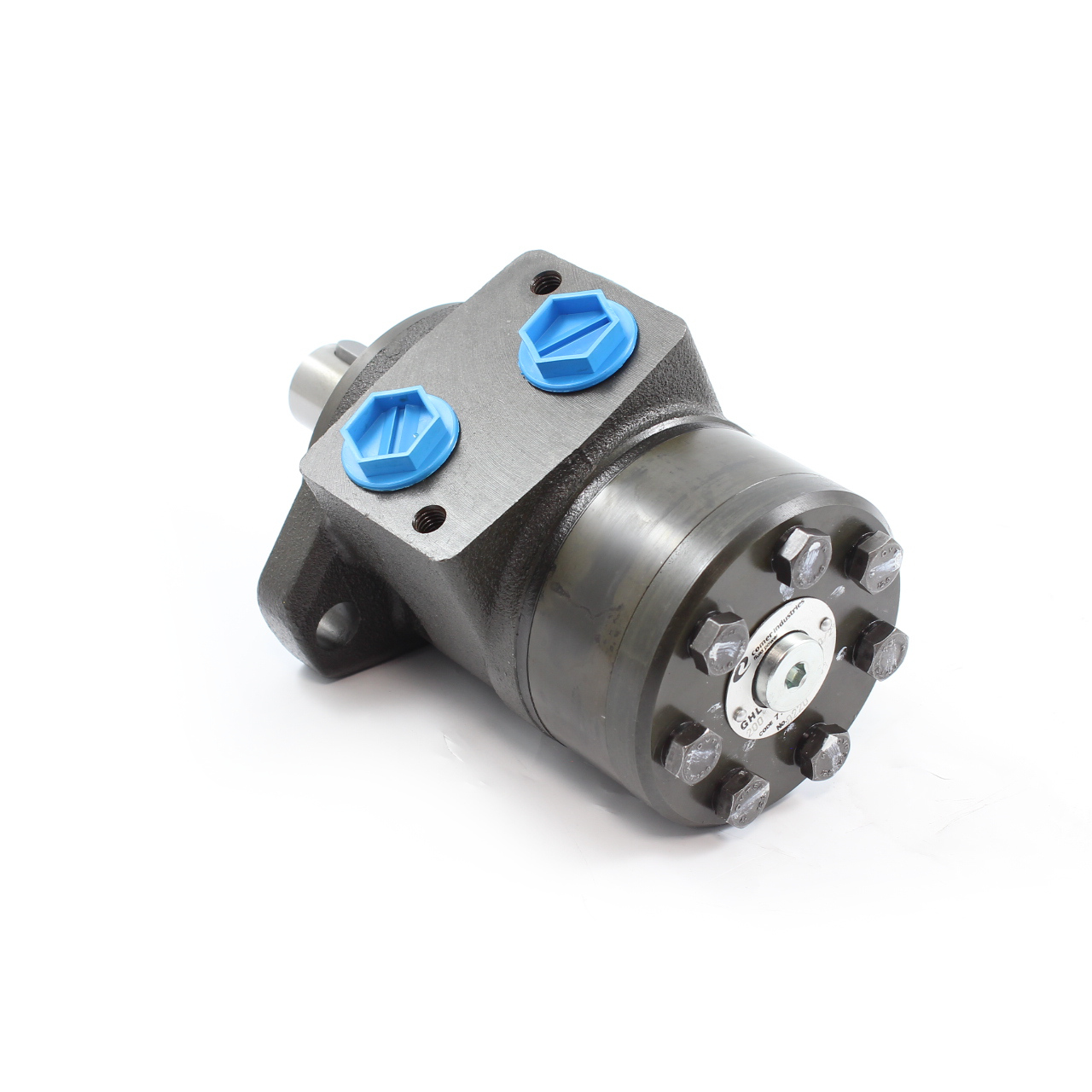

Orbit Hydraulic Motor (Gerotor) GHL 200

Technical features:

Displacement: 198 cc
Max Speed (CONT./INT.*): 303 rpm / 378 rpm
Max Torque(CONT./INT.*/PEAK**): 36,6 daNm / 45,6 daNm / 55 daNm
Max Output (CONT./INT.*): 10 kW / 12 kW
Max Oil Flow (CONT./INT.*): 60 L/min. / 75 L/min.
Max pressure. (CONT./INT.*/PEAK**): 140 bar / 175 bar / 225 bar

* Intermittent operation (INT.): The permissible values may occur for max.10% of every minute.
**Peak load: the permissible values may occur for max. 1% of every minute.
